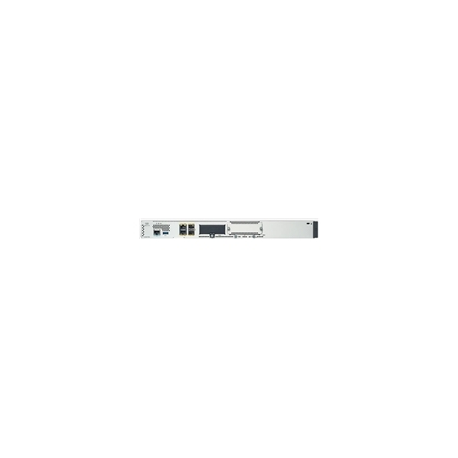

Cisco Catalyst 8200-1N-4T - Router - GigE - rack-mountable
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1864934 Intrastat: 85176200 Ražotāja kods: C8200-1N-4T
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | IPsec throughput (1400Bytes, clear text): 1 Gbps ¦ SD-WAN IPsec throughput (IMIX, clear text): 900 Mbps ¦ IPv4 forwarding throughput (1400-byte packet size): 6 Gbps |
| Capacity | SD-WAN overlay tunnels scale: 4000 ¦ IPsec SVTI tunnels: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 72000 ¦ IPv4 routes: 1600000 ¦ IPv6 routes: 1500000 ¦ Queues: 16000 ¦ NAT sessions: 1200000 ¦ Firewall sessions: 512000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000 |
| Network / Transport Protocol | RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP, SCP, OMP |
| Encryption Algorithm | DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI, 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | NAT support, PAT support, Syslog support, URL filtering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Bidirectional Forwarding Detection (BFD), DHCP client, Forward Error Correction (FEC), Class of Service (CoS), Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Datagram Transport Layer Security (DTLS), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Application Aware Routing (AAR), Interactive Voice Response (IV |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032, CISPR 32 Class A, VCCI-CISPR 32:2016 Class A, EN 55035, IEC/EN 61000-3-3, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1 |
| Processor | Intel |
| RAM | 8 GB (installed) / 32 GB (max) |
| Flash Memory | 8 GB |
| Hard Drive | 16 GB |
| VoIP Protocols | SRTP |
| Interfaces | WAN: 4 x Ethernet 1000 |
| Expansion Slots | 1 (total) / 1 (free) x NIM ¦ 1 (total) / 1 (free) x Pluggable Interface Module (PIM) |
| Installed Modules Qty (Max) | 0 (installed) / 2 (max) |
| Power Device | Internal power supply - 100 Watt |
| Installed Qty | 1 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| MTBF | 692,577 hours |
| OS Required | Cisco IOS XE 17.4.1 |
| Width | 43.8 cm |
| Depth | 30 cm |
| Height | 4.39 cm |
| Weight | 4.54 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
