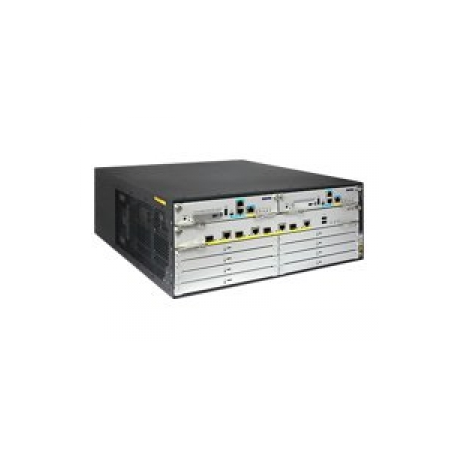

HPE MSR4060 - Modular expansion base - rack-mountable
HPE MSR4060 - Modular expansion base - rack-mountable
Ražotājs
•HPE
Ražotāja kods
•JG403A
Artikuls
•1021592
Intrastat
•85176200
Pakas svars
•23.111 kg
Device Type
Modular expansion base
Enclosure Type
Desktop, rack-mountable - modular - 4U
Connectivity Technology
Wired
Network / Transport Protocol
TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
Routing Protocol
OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Encryption Algorithm
MD5, SSL, TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386
Interfaces
Management: 1 x RJ-45 ¦ Management: 1 x RS-232C/USB
Expansion Slots
3 (total) / 3 (free) x expansion slot ¦ 6 (total) / 6 (free) x High-performance Multifunction Interface Module (HMIM)
Installed Modules Qty (Max)
0 (installed) / 9 (max)
Power Device
Internal power supply (not installed)
Installed Qty
4 (max)
Voltage Required
AC 120/230 V (50/60 Hz)
Rack Mounting Kit
Included
MTBF
178.66 years
Width
44 cm
Depth
48 cm
Height
17.5 cm
Weight
20.65 kg
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
