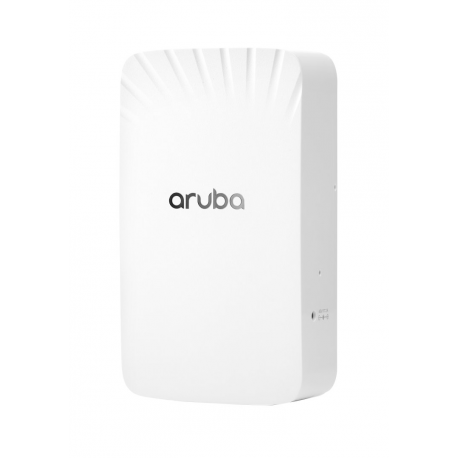

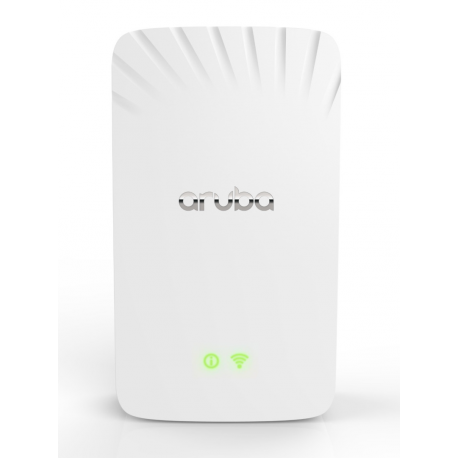

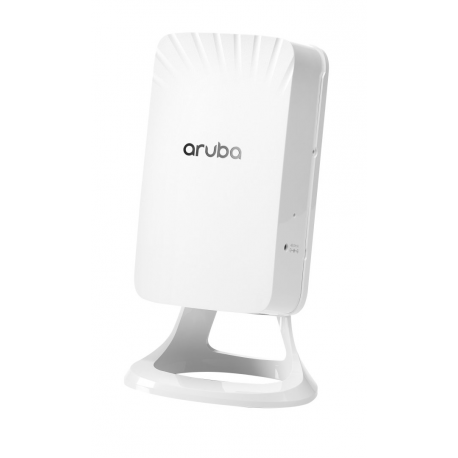

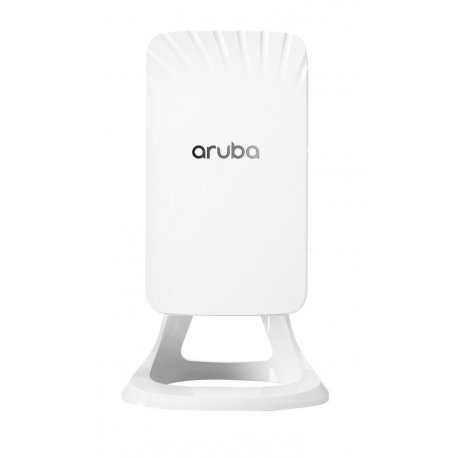

HPE Aruba AP-505H (RW) Unified Hospitality - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz
HPE Aruba AP-505H (RW) Unified Hospitality - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz
Ražotājs
•HPE
Ražotāja kods
•R3V46A
Artikuls
•1743034
Intrastat
•85176930
Pakas svars
•0.473 kg
Kopā pieejams (gab.)
•14
Tuvākā piegāde
•26.06.2026
Device Type
Radio access point
Ruggedized Design
Indoor
Width
8.6 cm
Depth
4.7 cm
Height
15 cm
Weight
360 g
Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
1.5 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method
OFDM, DSSS, OFDMA
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 287 Mbps
Capacity
Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16
Status Indicators
Port status, power, system, status, PoE
Features
Auto-uplink (auto MDI/MDI-X), DFS support, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, HPE SmartRate
Encryption Algorithm
WPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.11ax
Antenna
Internal
Antenna Qty
2
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE), Zigbee
Interfaces
1 x 2500Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB
Compliant Standards
EN 60950, IEC 60950, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, R&TTE Directive 1995/5/EC, ISED, RED 2014/53/EU
Power Over Ethernet (PoE) Supported
PoE+
Shipping Width
11.1 cm
Shipping Depth
5.4 cm
Shipping Height
16.7 cm
Shipping Weight
450 g
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 93% (non-condensing)
