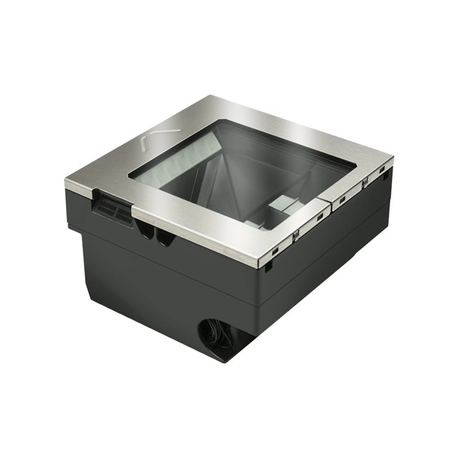

Datalogic Magellan 3510HSi - Barcode scanner - integrated - 2D imager - decoded - RS-232
images are for illustrative purposes only
New
Article: 1783620 Intrastat: 84719000 SKU: M3511-010210-07104
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - integrated - stationary |
| Localisation | Europe |
| Interface Type | RS-232 |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 800 |
| Window Glass Type | Sapphire Glass (SG) |
| Scan Mode | Fixed projection |
| Max Working Distance | 10.2 cm |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | GS1 DataBar, QR code, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), Micro SD card slot, 25 kV ESD protection (air discharge) |
| Interfaces | 1 x RS-232 - Type A |
| Included Accessories | Mounting kit |
| Cables Included | 1 x serial cable - 4.57 m |
| Compliant Standards | IP52, China RoHS, EN 62471:2008, IEC 62471, EU RoHS |
| Power Device | Power adapter |
| Voltage | AC 100-240 V (50 - 60 Hz) |
| Width | 15.2 cm |
| Depth | 15.2 cm |
| Height | 8.7 cm |
| Weight | 980 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
