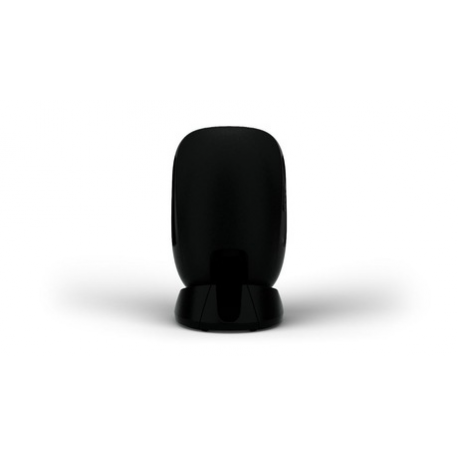

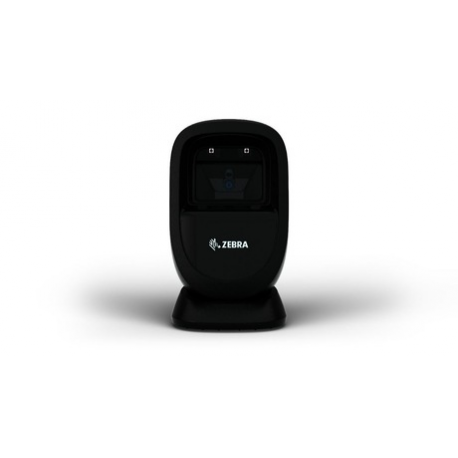

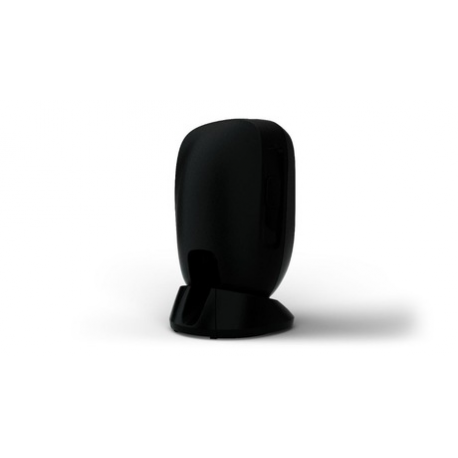

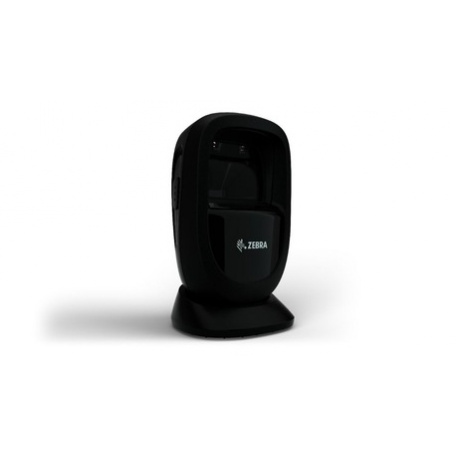

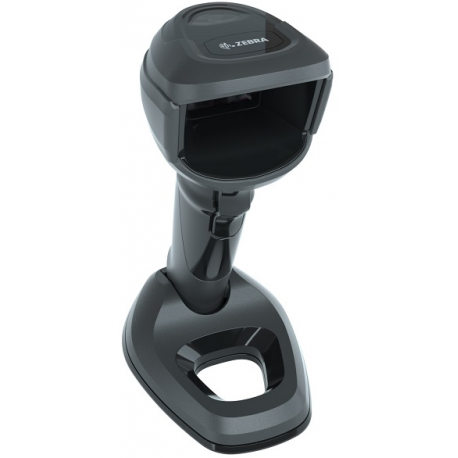

Zebra DS9908-SR - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB 2.0
Zebra DS9908-SR - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB 2.0
Manufacturer
•ZEBRA
Reference
•DS9908-SR4U210RAZE
Article
•1662464
Intrastat
•84716070
Shipping weight
•0.75 kg
Manufacturer price
•1535.83 €
Type
Barcode scanner - handheld
Colour
Midnight black
Interface Type
USB 2.0
Minimum Bar Width
3 mil
Scan Element Type
2D imager - Red LED
Sensor Resolution
1280 x 800
Light Source Wave Length
617 nm
Scan Mode
Single-pass
Max Working Distance
45.7 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
16%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, China Han Xin Code, Composite, Korean 3 of 5, Base 32
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS), ESD (electrostatic discharge) safe, deactivation of EAS tag, Digimarc Barcode Technology
Interfaces
USB 2.0
Cables Included
USB cable - 2 m
Compliant Standards
EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 62368-1, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 61000-3-2:2014 Class A, IEC 62471-1:2006, EN 55032:2015+AC:2016 Class B, EN 55035:2017
Electric Current Required
70 mA (standby), 321 mA (typical)
Width
9.4 cm
Depth
13.2 cm
Height
20.3 cm
Weight
330 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
