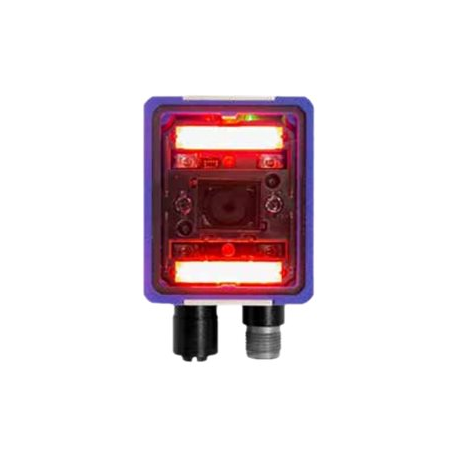

Datalogic Matrix 220 302-010 - High Performance - barcode scanner - desktop - 45 frames / sec - decoded - Ethernet 100, RS-232 / 422
images are for illustrative purposes only
New
Article: 1789254 Intrastat: 84719000 SKU: 937900010
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - desktop - stationary |
| Interface Type | Ethernet 100, RS-232/422 |
| Minimum Bar Width | 12 mm |
| Scan Element Type | CMOS - Red LED |
| Sensor Resolution | 1280 x 960 |
| Scan Mode | Fixed projection |
| Frame Rate | 45 frames / sec |
| Max Working Distance | 40 cm |
| Pitch (Degrees) | 35 |
| Decode Capability | Code 93, Matrix 2 of 5, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Codabar, Code 128, Interleaved 2 of 5, Postnet, Data Matrix, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, 4-State postal code, Pharmacode, Swedish Post, Standard 2 of 5, Intelligent Mail Barcode, MSI, GS1-128, UPC-A / E, EAN-8/13 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Programmable, ID-NET, X-PRESS interface, autofocus, 7mm lens |
| Interfaces | 1 x Ethernet - M12 ¦ 1 x RS-232/422 - M12 |
| Compliant Standards | IP67, IP65 |
| Voltage | DC 10 - 30 V |
| Power Consumption Operational | 4.2 Watt |
| Width | 4.7 cm |
| Depth | 3.8 cm |
| Height | 7.8 cm |
| Weight | 173 g |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
