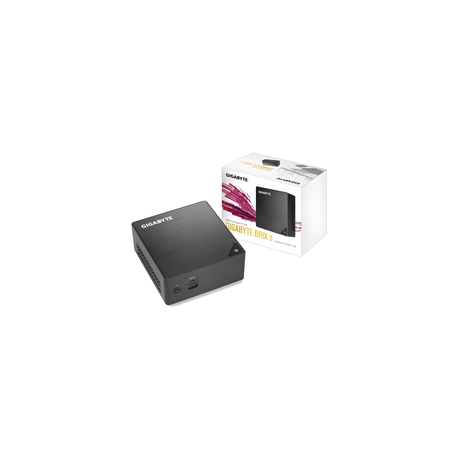

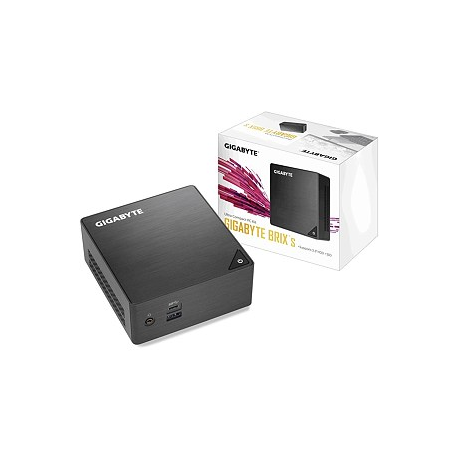

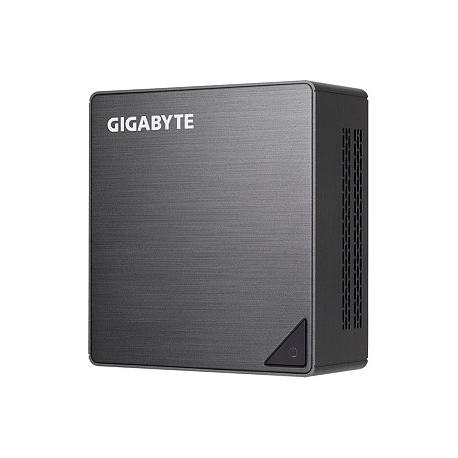

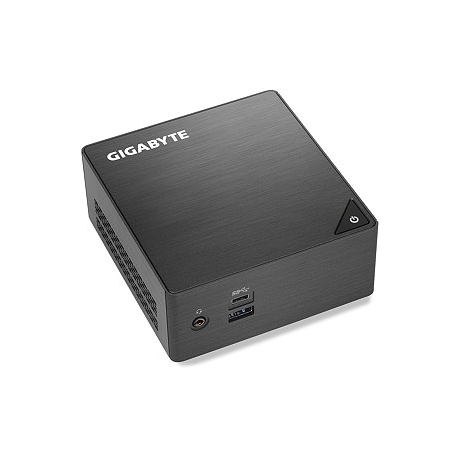

Gigabyte BRIX s GB-BLPD-5005 (rev. 1.0) - Barebone - Ultra Compact PC Kit - 1 x Pentium Silver J5005 / 1.5 GHz - RAM 0 GB - UHD Graphics 605 - GigE
images are for illustrative purposes only
New
Article: 1588617 Intrastat: 84718000 SKU: GB-BLPD-5005
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Ultra Compact PC Kit |
| CPU | Intel Pentium Silver J5005 / 1.5 GHz |
| Max Turbo Speed | 2.8 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 0 GB / 8 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 605 |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 2 |
| Sound Output Mode | Stereo |
| Ethernet Controller | Realtek RTL8111HS |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 M.2 Card - 2230 (Key A-E) 1 (total) / 1 (free) x M.2 Card - 2280 |

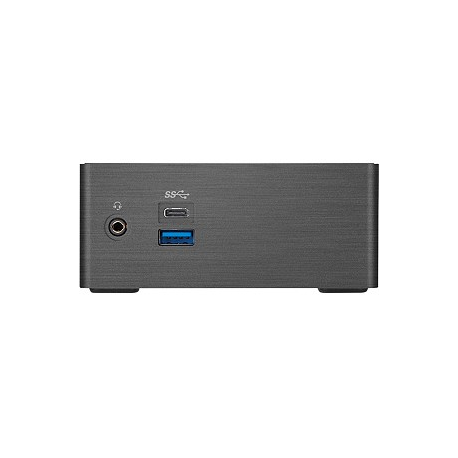

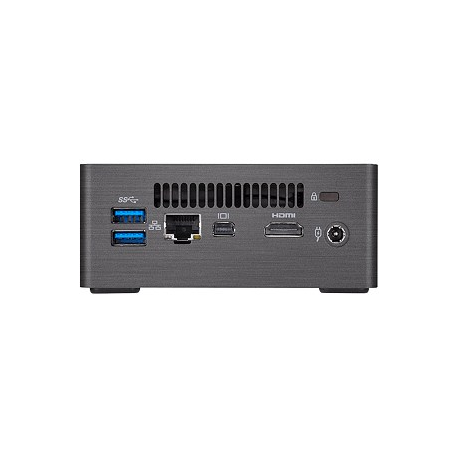

| Interfaces | 3 x USB 3.0 (1 front, 2 rear) 1 x HDMI 1 x Mini DisplayPort 1 x LAN (Gigabit Ethernet) 1 x headphones/microphone (1 in front) 1 x USB-C 3.0 (1 in front) |
| Included Accessories | VESA wallmount adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Device Type | Power adapter |
| Nominal Voltage | AC 120/230 V |
| OS Provided | No operating system |
| Width | 11.26 cm |
| Depth | 11.94 cm |
| Height | 4.68 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
