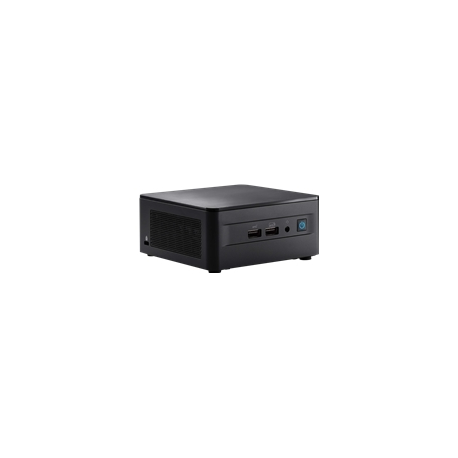

Intel Next Unit of Computing 12 Pro Kit - NUC12WSKv7 - Barebone - tall chassis - 1 x Core i7 1270P - vPro Enterprise - RAM 0 GB - Iris Xe Graphics - GigE, 2.5 GigE, Bluetooth 5.2 - WLAN: 802.11a / b / g / n / ac / ax, Bluetooth 5.2
images are for illustrative purposes only
New
Article: 3032740 Intrastat: 84718000 SKU: RNUC12WSKV70002
Pricing and stock details are available to registered users only.
| Platform Technology | Intel vPro Enterprise |
| Type | PC barebone |
| Product Form Factor | Tall chassis |
| Localisation | Region: Europe |
| CPU | Intel Core i7 (12th Gen) 1270P |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel Trusted Execution Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT), Intel vPro Platform Eligibility |
| Installed Size | 18 MB |
| Cache Per Processor | 18 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Type | No HDD |
| Type | SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Type | No optical drive |
| Monitor Type | None. |
| Interface Type | Thunderbolt 4 / HDMI |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 4 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I225-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x Thunderbolt 4/USB4/DisplayPort 1.4 - Type C ¦ 3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear) ¦ 2 x USB 2.0 - header (2 internal) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 2 x HDMI ¦ 1 x headphones/microphone - stereo mini-jack |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CEC |
| Device Type | Power supply |
| Software | Intel Management Engine Firmware 16 |
| Service & Support | Limited warranty - 3 years |
| Width | 11.7 cm |
| Depth | 11.2 cm |
| Height | 5.4 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
