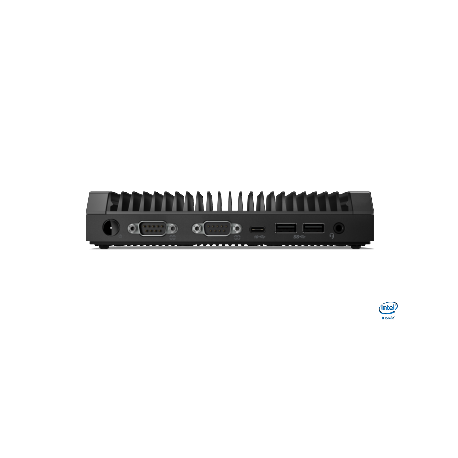

Lenovo ThinkCentre M90n-1 IoT 11AM - Nano - Core i3 8145U / 2.1 GHz - RAM 4 GB - SSD 128 GB - NVMe - UHD Graphics - GigE - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - Win 10 IoT Enterprise - monitor: none - keyboard: Nordic (Danish / Finnish / Norwegian / Swedish) - black (bottom), iron grey (top cover), black (mid bezel) - TopSeller - with CO2 Offset 0.5 ton
images are for illustrative purposes only
New
Article: 3158957 Intrastat: 84714100 SKU: 11AM001NMX
Pricing and stock details are available to registered users only.
| Type | Personal computer |
| Bundled Services | CO2 Offset 0.5 ton |
| Product Form Factor | Nano |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black (bottom), iron grey (top cover), black (mid bezel) |
| Localisation | Language: English, Nordic / region: Denmark, Finland, Norway, Sweden |
| CPU | Intel Core i3 (8th Gen) 8145U |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Installed Size | 4 GB |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2666 MHz |
| Configuration Features | Provided memory is soldered |
| Type | SSD - M.2 2242 |
| Capacity | 1 x 128 GB |
| Interface Type | PCI Express 3.0 x2 |
| Features | NVM Express (NVMe) |
| Type | 1 |
| RAID Level | RAID 0, RAID 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics Shared Video Memory (UMA) |
| Video Interfaces | DisplayPort, USB-C |
| Max Monitors Supported | 2 |
| Type | Mouse, keyboard |
| Keyboard Name | Lenovo Calliope Keyboard |
| Connectivity | Wireless |
| Interface | 2.4GHz |
| Localization & Layout | Nordic (Danish/Finnish/Norwegian/Swedish) |
| Mouse Name | Lenovo Calliope Mouse |
| Connectivity | Wireless |
| Interface | 2.4GHz |
| Interface (Bus) Type | M.2 Card |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8111K, RTL8111H |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AC 9560 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Slots | 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card (for SSD) |
| Interfaces | 3 x USB 3.2 Gen 2 (2 front, 1 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 1 x USB-C 3.2 Gen 2 (display function, power-in [20V and >45W]) ¦ 1 x headphones/microphone (1 in front) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 2 x serial (2 in front) |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | RoHS, WEEE, REACH, Energy-Related Products (ErP) Lot 3, MIL-STD-810H |
| Manufacturer Selling Program | TopSeller |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Efficiency | 88% |
| OS Provided | Windows 10 IoT Enterprise Danish / English / Finnish / Norwegian / Swedish |
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Service & Support | Limited warranty - 3 years - on-site |
| Width | 17.9 cm |
| Depth | 8.8 cm |
| Height | 3.45 cm |
| Weight | 720 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
