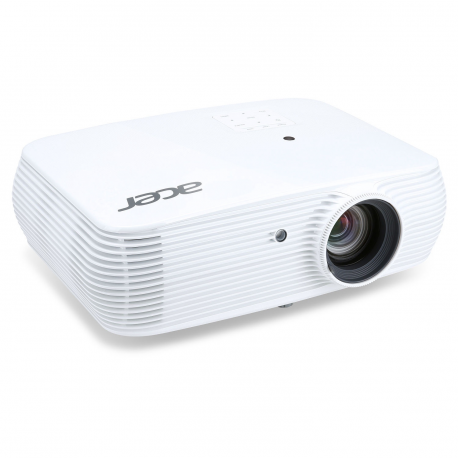

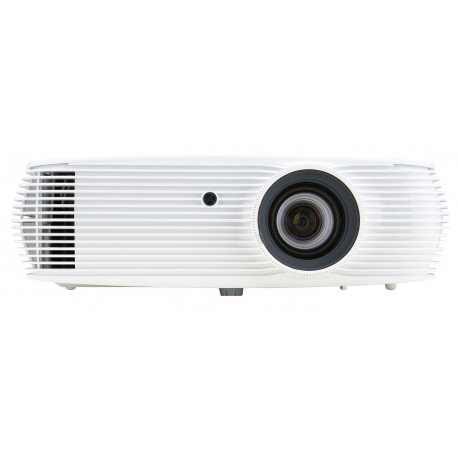

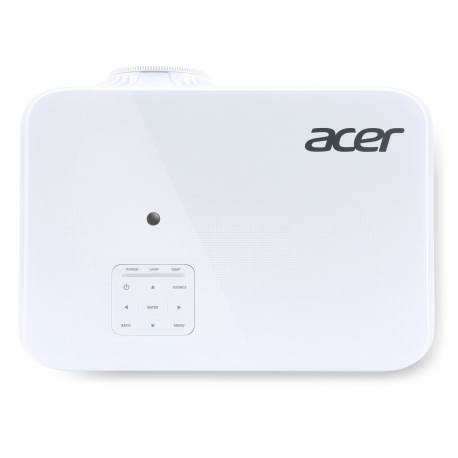

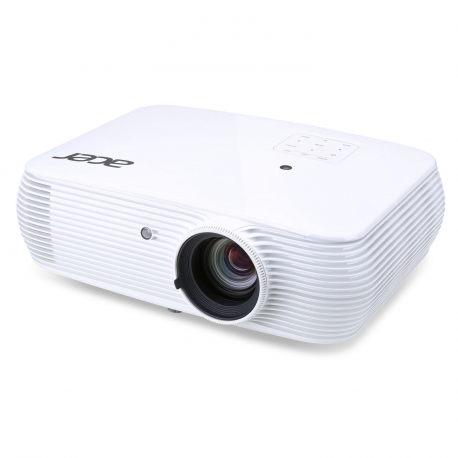

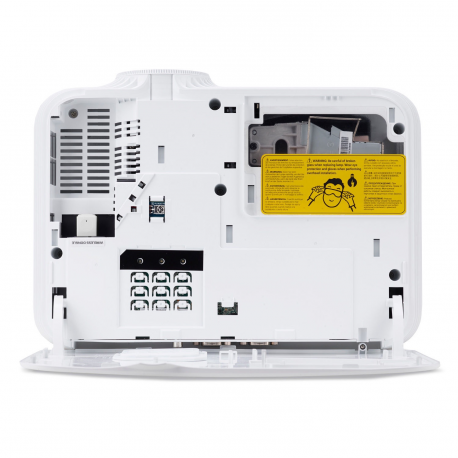

Acer P5630 - DLP projector - UHP - portable - 3D - 4000 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - 1080p - LAN
images are for illustrative purposes only
New
Article: 3018995 Intrastat: 85286200 SKU: MR.JPG11.001
Pricing and stock details are available to registered users only.
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Built-in Devices | Speaker |
| Networking | Ethernet |
| Localisation | Europe |
| Brightness | 4000 ANSI lumens |
| Brightness (Reduced) | 3200 ANSI lumens |
| Contrast Ratio | 20000:1 (dynamic) |
| Image Size | 81 cm - 762 cm |
| Projection Distance | 1 m - 7.3 m |
| Throw Ratio | 1.13 - 1.47:1 |
| Uniformity | 85 % |
| Digital Zoom Factor | 2x |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 1920 x 1200 (resized) |
| Native Aspect Ratio | 16:10 |
| Colour Support | 1.07 billion colours |
| Max Sync Rate (V x H) | 120 Hz x 100 kHz |
| Bulb type | UHP 240 Watt |
| Bulb life cycle | Up to 4000 hour(s) - normal mode Up to 15000 hour(s) - economic mode |
| Features | Instant Pack Technology, DLP 3D Ready, Auto Vertical Keystone, SmartFormat Technology, 16:9 aspect ratio support, EcoProjection Technology, 4:3 aspect ratio support, Auto Power Off, Acer ColorSafe II Technology, Quick-Start, ColorBoost 3D Technology, Acer LumiSense+ |
| Focus Type | Manual |
| Lens Aperture | F/2.5-2.78 |
| Zoom Type | Manual |
| Zoom Factor | 1.3x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -20 / +20 |
| Horizontal Keystone Correction | -20 / +20 |
| TV System | PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G |
| Analogue video Signal | RGB, composite video |
| Video Interfaces | VGA, HDMI, composite video, MHL |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 16 Watt |
| Speakers | 1 x mixed channel |

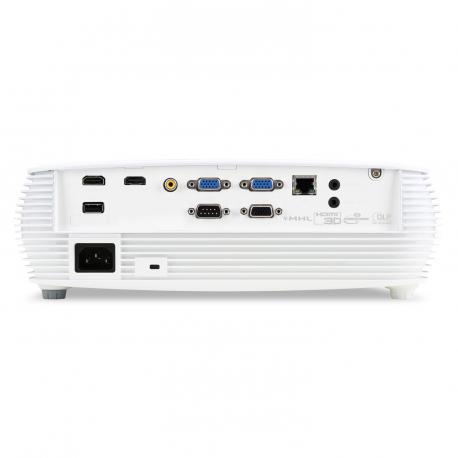

| Interfaces | 1 x HDMI - 19 pin HDMI Type A 1 x Mobile High-Definition Link (MHL) / HDMI 2 x VGA input - 15 pin HD D-Sub (HD-15) 1 x VGA output - 15 pin HD D-Sub (HD-15) 1 x serial RS-232 1 x network - RJ-45 1 x USB - 4 pin USB Type A 1 x audio line-in - mini-phone 3.5 mm 1 x audio line-out - mini-phone 3.5 mm 1 x composite video input - RCA |
| Included Accessories | Carrying case, wireless remote control |
| Cables Included | 1 x VGA cable |
| Security Features | Security lock slot (cable lock sold separately) |
| Power Source | AC |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 290 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Width | 31.5 cm |
| Depth | 21.4 cm |
| Height | 10.3 cm |
| Weight | 2.73 kg |
| Service & Support | Limited warranty - 3 years Limited warranty - lamp - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 80% |
| Sound Emission | 31 dBA |
| Sound Emission (Economic Mode) | 24 dBA |
