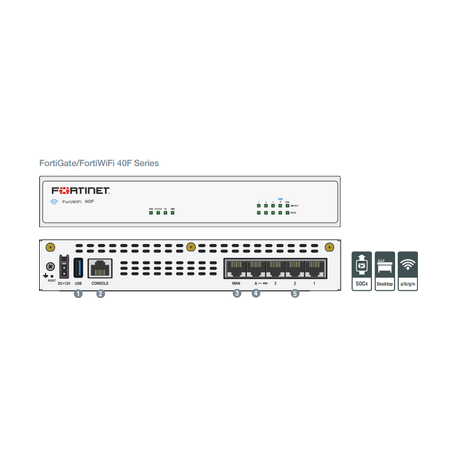

Fortinet FortiGate 40F - Security appliance - GigE - desktop

  • FORTINET FortiGate-40F - 5 x GE RJ45 ports including 4 x Internal Ports 1 x WAN Ports Max managed FortiAPs Total Tunnel 10 5
images are for illustrative purposes only

New

Article: 1795143 Intrastat: 85176990 SKU: FG-40F
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSecurity appliance
Width21.6 cm
Depth14 cm
Height3.65 cm
Processors Installed1 x Fortinet FortiASIC SOC4
Form FactorDesktop
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network / Transport ProtocolIPSec
PerformanceIPS throughput: 1 Gbps ¦ NGFW throughput: 800 Mbps ¦ Threat protection throughput: 600 Mbps ¦ VPN throughput (512-bit IPSec): 4.4 Gbps ¦ SSL inspection throughput: 310 Mbps ¦ SSL inspection throughput: 320 connections per second ¦ Firewall throughput (1518-byte UDP): 5 Gbps ¦ Firewall throughput (512-byte UDP): 5 Gbps ¦ Firewall throughput (64-byte UDP): 5 Gbps ¦ Firewall throughput: 7.5 Mpps ¦ Application control (HTTP 64K): 990 Mbps ¦ VPN throughput (SSL): 490 Mbps ¦ CAPWAP throughput: 3.5 Gbps
CapacityLatency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 250 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 8 ¦ Number of FortiAP devices: 10 ¦ Number of FortiToken devices: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 55000 ¦ Number of FortiClient devices: 200
FeaturesFirewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection, FortiLink Mode
Encryption AlgorithmSSL, TLS 1.3
Interfaces3 x 1000Base-T - RJ-45 ¦ 1 x FortiLink - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A
Compliant StandardsUL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B
Power DeviceExternal power adapter
Installed Qty1
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Power Consumption Operational16.6 Watt
OS ProvidedFortiOS
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating10 - 90% (non-condensing)
