ATEN CE 774 Local and Remote Units - KVM / audio / serial extender - USB - up to 150 m
ATEN CE 774 Local and Remote Units - KVM / audio / serial extender - USB - up to 150 m
Manufacturer
•ATEN
Reference
•CE774-AT-G
Article
•416788
Intrastat
•85176990
Shipping weight
•0.69 kg
Embeeded battery
No
WEEE tax
Yes
Gross weight
2.72
Gross depth (mm)
210
Gross width (mm)
100
Gross height (mm)
330
Net weight
2.4
Producer product name
USB VGA Dual View Cat 5 KVM Extender
Console port
2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
DC-in jack
Yes
Emulations
Mouse USB, Keyboard USB
Operating temperature
0–50°C
Storage temperature (T-T)
-20–60
Features

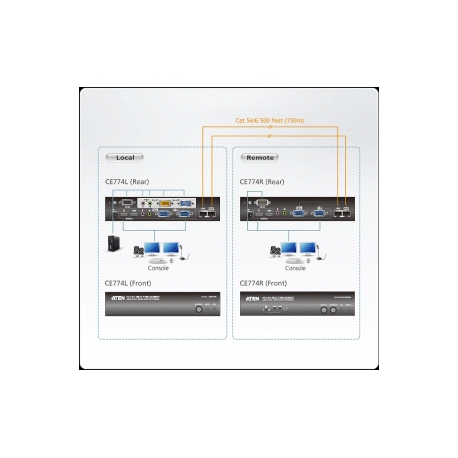

Dual View Support - connect two screens to transmit two video output signals to a remote site up to 150 m away using inexpensive Cat 5e/6 cables. Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles. Superior video quality – 1920x1200@60Hz(30 m), 1600x1200@60Hz(150 m). Gain/Compensation Control – adjusts signal strength in order to compensate for distance
KVM Ports

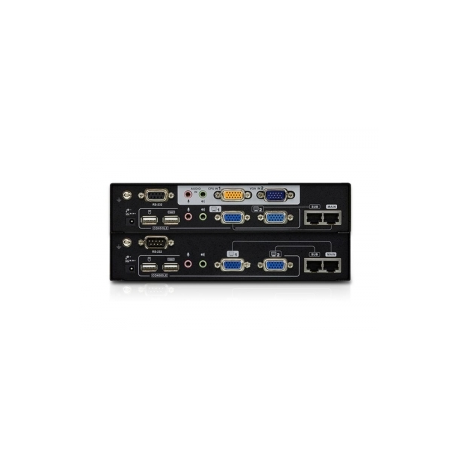

1 x SPHD-17 Female (Yellow) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x HDB-15 Male (Blue)
WEE classification
CL109:6:2017-04-01
