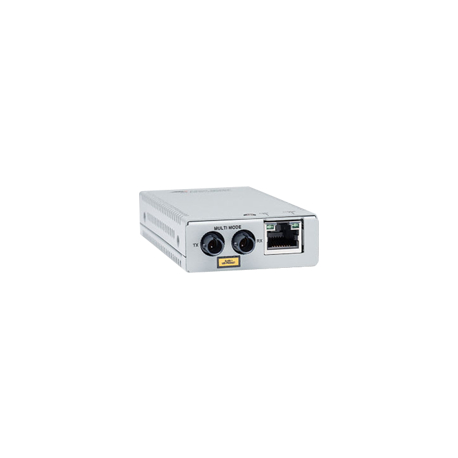

Allied Telesis AT MMC200 / ST - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 1310 nm
images are for illustrative purposes only
New
Article: 1608698 Intrastat: 85176990 SKU: AT-MMC200/ST-60
Pricing and stock details are available to registered users only.
| Device Type | Fibre media converter |
| Form Factor | External |
| Localisation | Australia, United Kingdom, United States, Europe |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 2 km |
| Status Indicators | Power, system, link/activity |
| Features | Full duplex capability, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), store and forward, wall mountable, Jumbo Frames support, Energy Efficient Ethernet, Automatic Link Restoration |
| Compliant Standards | IEEE 802.1Q |
| Interfaces | 1 x Ethernet 100Base-FX - ST multi-mode female x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female |
| Compliant Standards | FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950-1, EN 60950-1, EN 55022 Class A |
| Power Device | External power adapter |
| Power Consumption Operational | 1.7 Watt |
| Width | 5.6 cm |
| Depth | 10.16 cm |
| Height | 2.18 cm |
| Weight | 170 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
