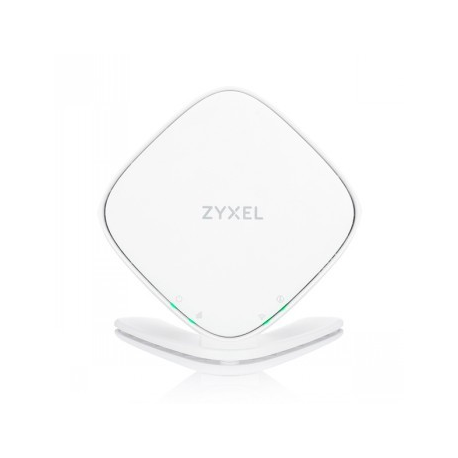

Zyxel WX3100-T0 - Wi-Fi system (access point / extender) - MPro Mesh Solutions - GigE - 802.11a / b / g / n / ac / ax - Dual Band
images are for illustrative purposes only
New
Article: 1923957 Intrastat: 85176200 SKU: WX3100-T0-EU01V2F
Pricing and stock details are available to registered users only.
| Device Type | Wi-Fi system - MPro Mesh Solutions - 2-port switch (integrated) |
| Wi-Fi System Components | Access point/extender |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 600 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
| Capacity | Maximum number of configured SSIDs: 4 |
| Network / Transport Protocol | HTTP, HTTPs |
| Routing Protocol | IGMP |
| Remote Management Protocol | Telnet, SSH, TR-069, TR-098, TR-181 i2 |
| Encryption Algorithm | AES, WPA2, WPA2-PSK, WPA3-SAE |
| Wi-Fi Rating | AX1800 |
| Mesh Networking | MPro Mesh Solutions |
| Features | IGMP snooping, repeating mode, Access Point operational mode, Wi-Fi Multimedia (WMM) support, Wi-Fi Protected Setup (WPS), reset button, DHCP client, dual-stream (2x2), MU-MIMO technology, beamforming technology, dual image support, VLAN Tagging, flexible traffic classification support, Orthogonal Frequency Division Multiple Access (OFDMA), WPS button, EasyMesh, BSS Coloring, Wi-Fi on/off button, Target Wake Time (TWT), configuration backup/update/restore default via Web |
| Compliant Standards | IEEE 802.1Q |
| Status Indicators | Power, LAN, WPS, Wi-Fi, backhaul link quality |
| Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Aerial | Internal |
| Antenna Qty | 4 |
| Power Device | External power adapter |
| Width | 12.8 cm |
| Depth | 4 cm |
| Height | 12.8 cm |
| Weight | 314 g |
| Shipping Width | 27.9 cm |
| Shipping Depth | 13.7 cm |
| Shipping Height | 4.4 cm |
| Shipping Weight | 532 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
