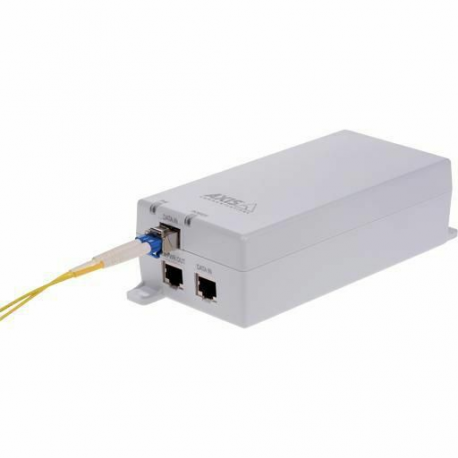

AXIS T8154 Midspan - PoE injector (internal) - AC 100-240 V - 60 Watt - India, Europe - for AXIS W400
images are for illustrative purposes only
New
Article: 3189293 Intrastat: 85044090 SKU: 02740-002
Pricing and stock details are available to registered users only.
| Device Type | PoE injector - internal |
| Power Over Ethernet (PoE) | High PoE |
| Localisation | India, Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 1 x RJ-45 - 55 V |
| Max Electric Current | 1.5 A |
| Power Capacity | 60 Watt |
| Interfaces | 1 x Gigabit LAN - SFP (mini-GBIC) ¦ 1 x Gigabit LAN - RJ-45 ¦ 1 x Gigabit LAN - RJ-45 |
| Cables Included | Power cable |
| Features | Wall mountable, LED indicator |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, CB, EN 61000-6-1, CCC, EN 61000-6-2, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, REACH, FCC Part 15 B Class A, KC, EN 50121-4, IEC 62236-4, VCCI Class A, AS/NZS CISPR 22, RCM, EN 55022 Class A, EN 55032 Class A, KCC KN32 Class A, KCC KN35 |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Width | 5 cm |
| Depth | 8 cm |
| Height | 18.4 cm |
| Weight | 517 g |
| Designed For | AXIS W400 |
