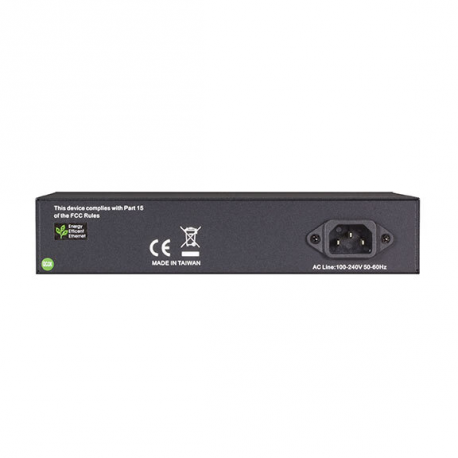

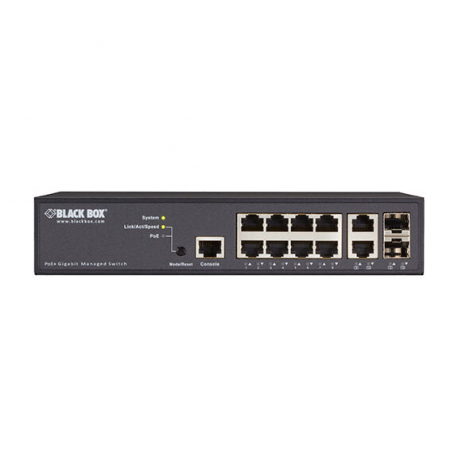

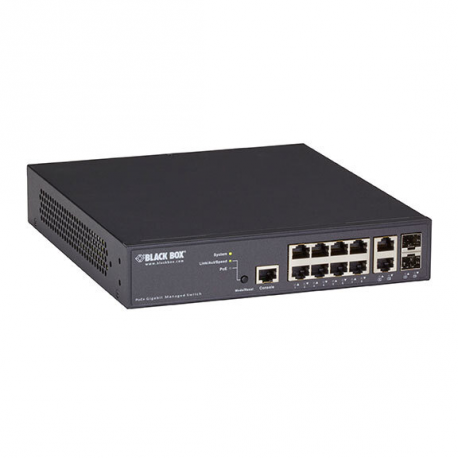

Black Box LPB2900 Series Gigabit PoE+ Managed Switch with MediaCento Controller - Switch - Managed - 8 x 10 / 100 / 1000 (PoE+) + 2 x combo SFP + 2 x 10 / 100 / 1000 - desktop - PoE+ (130 W) - AC 100 / 230 V - TAA Compliant
Black Box LPB2900 Series Gigabit PoE+ Managed Switch with MediaCento Controller - Switch - Managed - 8 x 10 / 100 / 1000 (PoE+) + 2 x combo SFP + 2 x 10 / 100 / 1000 - desktop - PoE+ (130 W) - AC 100 / 230 V - TAA Compliant
Manufacturer
•BLACK BOX
Reference
•LPB2910A
Article
•2797568
Intrastat
•85176200
Shipping weight
•2.2 kg
Device Type
Switch - 10 ports - Managed
Enclosure Type
Desktop 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
PoE Budget
130 W
Performance
Forwarding performance: 20 Gbps ¦ Forwarding performance: 14.88 Mpps
Capacity
Simultaneous VLANs: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, SSH, SSH-2
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+
Features
Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, port mirroring, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Class of Service (CoS), IGMP proxy, cable test, Back Pressure Support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP
Status Indicators
Port transmission speed, power, link/activity
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x SFP ¦ 1 x management (LAN) RJ-45 ¦ 2 x 1000Base-T RJ-45
Power Device
Internal power supply
Voltage Required
AC 100/230 V (50 - 60 Hz)
Cables Included
1 x console cable
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, EN55024, EN55022 Class A, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 61000-3
TAA Compliant
Yes
Width
22 cm
Depth
24 cm
Height
4.4 cm
Weight
2.2 kg
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
