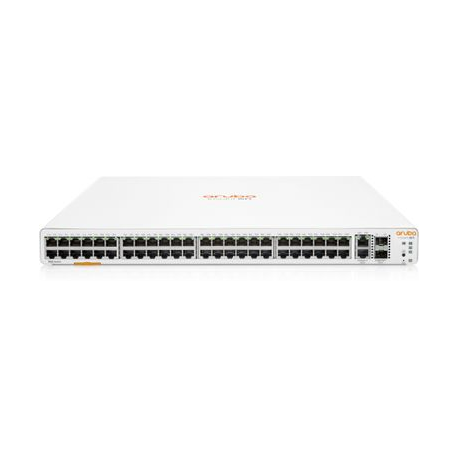

HPE Aruba Instant On 1960 48G 2XGT 2SFP+ Switch - Switch - L2+ - smart - 48 x 10 / 100 / 1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet - desktop, rack-mountable

  • HPE Aruba IOn 1960 48G 2XT 2XF Switch Europe - English
images are for illustrative purposes only

New

Article: 1879910 Intrastat: 85176200 SKU: JL808A#ABB
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSwitch - 48 ports - L2+ - smart - stackable
Enclosure TypeDesktop, rack-mountable
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
PerformanceLatency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps
CapacityIPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32
MAC Address Table Size16000 entries
Jumbo Frame Support9216 bytes
Routing ProtocolIGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management ProtocolSNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Encryption AlgorithmSSL
Authentication MethodRADIUS
FeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritisation, auto voice VLAN, loop protection
Compliant StandardsIEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor1: 800 MHz
Status IndicatorsPort status
Interfaces48 x Gigabit LAN RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x 10Gbit LAN RJ-45
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
Power Consumption Operational80 Watt
Rack Mounting KitIncluded
MTBF109.4 years
Compliant StandardsPlug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, EN/IEC 60825-1:2014 Class 4
LocalisationEnglish / Europe
Width44.25 cm
Depth35.05 cm
Height4.4 cm
Weight4.4 kg
Service & SupportLimited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating15 - 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage15 - 95% (non-condensing)
