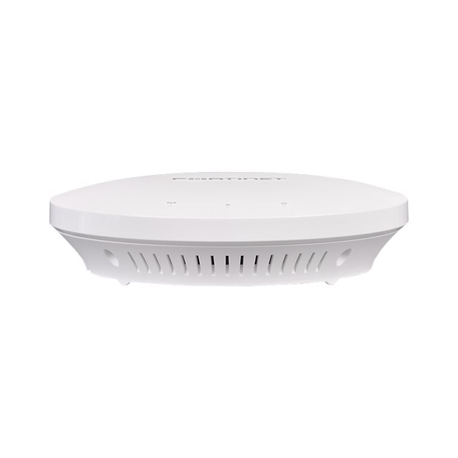

Fortinet FortiAP 221E - Radio access point - 802.11ac Wave 2 - Wi-Fi 5 - 2.4 GHz, 5 GHz
images are for illustrative purposes only
New
Article: 1828516 Intrastat: 85176930 SKU: FAP-221E-E
Pricing and stock details are available to registered users only.
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 4.7 cm |
| Weight | 500 g |
| Localisation | Europe |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | 64 QAM, 256 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (2.4 GHz): 300 Mbps Maximum throughput (5 GHz): 867 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 Concurrent users per radio: 512 |
| Features | URL filtering, wall mountable, Mesh networking, WPA2 encryption, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, ceiling mountable, Maximum Likelihood Demodulation (MLD), Captive Portal, security lock slot (cable lock sold separately), WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, T-Rail mountable, 2x2 MU-MIMO technology |
| Encryption Algorithm | TLS, PEAP, TTLS, WPA, WPA2, WEP |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Antenna | Internal |
| Antenna Qty | 4 |
| Gain Level | 5 dBi |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 1 x USB - Type A 1 x management (RS-232) - RJ-45 |
| Included Accessories | Wall mounting kit, ceiling mounting kit, T-Rail mounting kit |
| MTBF | 30 years |
| Compliant Standards | ETSI, UL 2043, RoHS, LVD |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10.25 Watt |
| Shipping Weight | 2.2 kg |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
