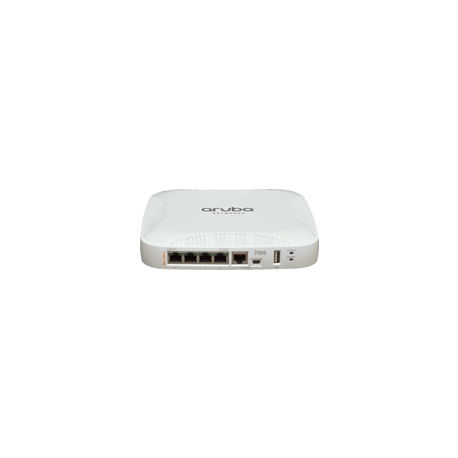

HPE Aruba 7005 (RW) Controller - Network management device - GigE - DC power
HPE Aruba 7005 (RW) Controller - Network management device - GigE - DC power
Manufacturer
•HPE
Reference
•JW633A
Article
•1423006
Shipping weight
•0.92 kg
Device Type
Network management device
Width
20 cm
Depth
20 cm
Height
4.1 cm
Weight
920 g
Form Factor
External
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
AES throughput: 2.2 Gbps ¦ Firewall throughput: 2 Gbps ¦ 3DES throughput: 1.2 Gbps
Capacity
Virtual interfaces (VLANs): 4094 ¦ Maximum number of access points: 16 ¦ Concurrent devices: 1024 ¦ Concurrent GRE tunnels: 512 ¦ Maximum number of access points (remote): 16 ¦ Concurrent tunneled ports: 512 ¦ Concurrent IPSec sessions: 512 ¦ Concurrent SSL fallback sessions: 512 ¦ Active firewall sessions: 16384
Status Indicators
Power, status
Features
VPN support, auto-negotiation, IPv6 support, Quality of Service (QoS), IPv4 support, fanless, Adaptive Radio Management (ARM), ClientMatch, AppRF technology, RFProtect
Interfaces
4 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x mini-USB - Type B
MTBF
323,896 hours
Compliant Standards
C-Tick, CISPR 22 Class B, EN 61000-3-2, NOM, EN 61000-3-3, EN55022 Class B, CB, ICES-003 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, KCC, ANATEL, cTUVus, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, KN24, EN 55024: CISPR 24:2010
Power Device
External power adapter
Voltage Required
DC 12 V
Power Consumption Operational
16.6 Watt
OS Required
ArubaOS
Service & Support
Limited warranty - parts and labour - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95% (non-condensing)
