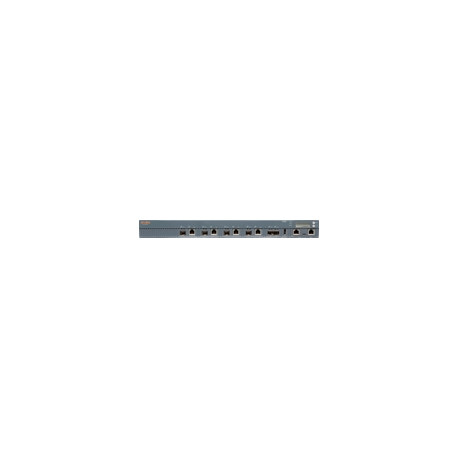

HPE Aruba 7205 (RW) Controller - Network management device - 10 GigE
images are for illustrative purposes only
| Device Type | Network management device |
| Built-in Devices | Status LCD |
| Width | 33.4 cm |
| Depth | 44.2 cm |
| Height | 4.4 cm |
| Weight | 4.95 kg |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Throughput: 12 Gbps |
| Capacity | Maximum number of access points: 256 ¦ Concurrent devices: 8192 ¦ Virtual interfaces (VLANs): 2048 ¦ Concurrent GRE tunnels: 8192 ¦ Maximum number of access points (remote): 256 ¦ Concurrent tunneled ports: 4096 ¦ Concurrent IPSec sessions: 4096 ¦ Concurrent SSL fallback sessions: 4096 ¦ Active firewall sessions: 1000000 |
| Status Indicators | Status, link/activity |
| Features | VPN support, VLAN support, IPv6 support, IPv4 support, GRE tunneling |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 2 x 10GBase-X - SFP+ ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x console - RJ-45 ¦ 1 x mini-USB ¦ 4 x 1000Base-X - SFP (mini-GBIC) |
| Compliant Standards | ETSI, C-Tick, CISPR 22 Class A, EN 60950, NOM, VCCI Class A ITE, EN55024, EN55022 Class A, UL 60950, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, FCC Part 15 A, ANATEL, cTUVus, ISO 7779, CAN/CSA C22.2 No. 60950 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 75.2 Watt |
| Power Provided | 350 Watt |
| Service & Support | Limited warranty - parts and labour - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
