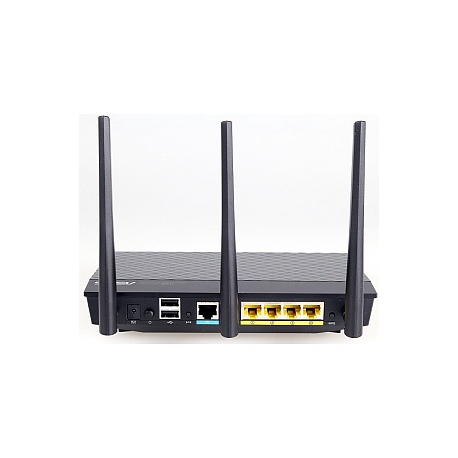

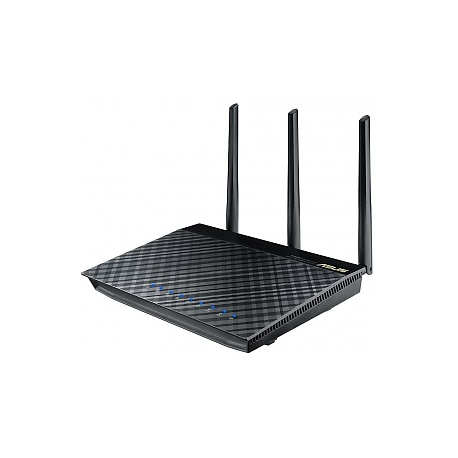

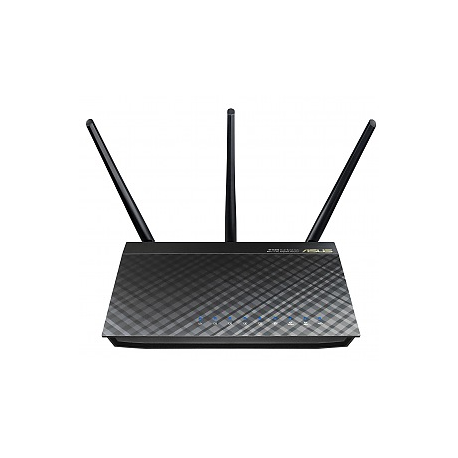

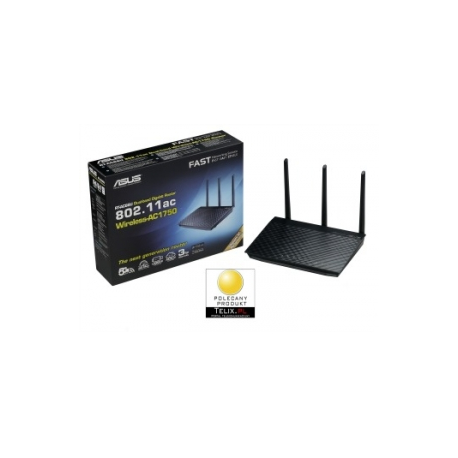

ASUS RT-AC66U - Wireless router - 4-port switch - GigE - 802.11a/b/g/n/ac - Dual Band
images are for illustrative purposes only
New
Article: 398046 Intrastat: 85176930 SKU: RT-AC66U
Pricing and stock details are available to registered users only.
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1750 Mbps |
| Capacity | Guest networks: 6 |
| Network / Transport Protocol | PPTP, L2TP, NTP, IPSec, PPPoE, LPR/LPD, FTP, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | HTTP |
| Encryption Algorithm | MPPE, 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Features | Network monitoring, DMZ port, VPN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), DoS attack prevention, print server, MAC address filtering, IPv6 support, URL filtering, parental control, IP address filtering, P2P client, download client, Quality of Service (QoS), virtual server support, Wi-Fi Protected Setup (WPS), IPSec passthrough, Samba support, FTP server, Multiple SSID support, static IP mode, DNS proxy, ASUS AiDisk, UPnP Media Server, bandwidth control, IPv4 support, DLNA Media Server, port triggering, 3G/4G USB Dongle Support, Traffic Control, ASUS AiRadar, Multicast Proxy support, VPN Server, ASUS AiCloud, ASUSWRT |
| Compliant Standards | IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, DLNA CERTIFIED, UPnP, IEEE 802.11ac |
| Processor | Broadcom |
| Status Indicators | Power, WAN, LAN, wireless, USB |
| Interfaces | WAN: 1 x 1000Base-T - RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 USB 2.0: 1 x 4 pin USB Type A USB 3.0: 1 x 9 pin USB Type A |
| Aerial | External detachable |
| Antenna Qty | 3 |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Included Accessories | Vertical stand |
| Cables Included | 1 x network cable |
| Software Included | Drivers & Utilities |
| OS Required | Linux, Apple MacOS X, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits) |
| Width | 20.7 cm |
| Depth | 14.88 cm |
| Height | 3.55 cm |
| Weight | 450 g |
