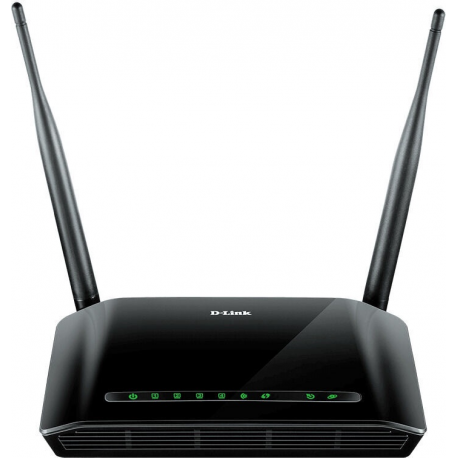

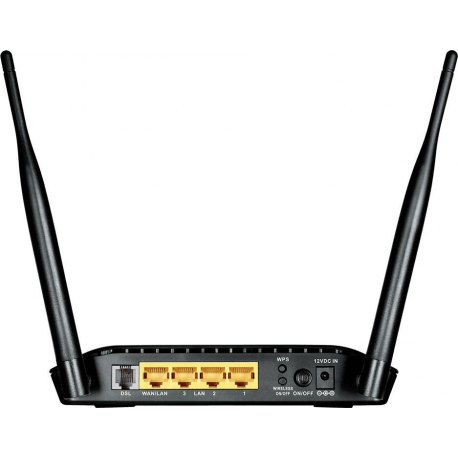

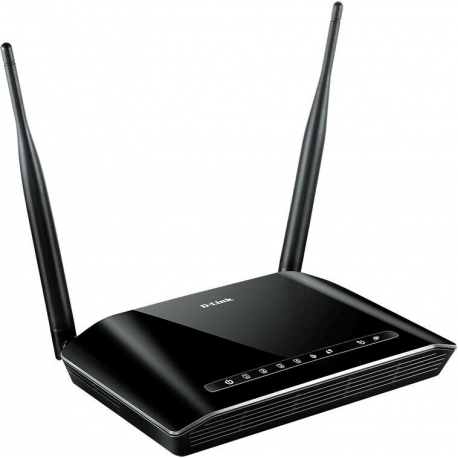

D-Link RangeBooster N DSL-2740U - Wireless router - DSL modem - 4-port switch - 802.11b/g/n (draft) - 2.4 GHz
images are for illustrative purposes only
New
Article: 1816788 Intrastat: 85176930 SKU: DSL-2740U/
Pricing and stock details are available to registered users only.
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft) |
| Frequency Band | 2.4 GHz |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, PPPoA |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, SSH |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| Authentication Method | Radio Service Set ID (SSID) |
| Features | DMZ port, NAT support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, packet filtering, Intrusion Detection System (IDS), VPN passthrough, parental control, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), virtual server support |
| Compliant Standards | IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft), IEEE 802.11e, CSA, EN55022, EN55024, FCC CFR47 Part 15 B, EN 300 328 |
| Status Indicators | Power, link OK, link/activity |
| Framing Format | ANSI T1.413 |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL, ADSL2, ADSL2+ |
| Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5 |
| Max Transfer Rate | 24 Mbps |
| Interfaces | WAN: 1 x ADSL2+ - RJ-11 LAN: 4 x 10Base-T/100Base-TX - RJ-45 |
| Aerial | External detachable |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Power Device | External power adapter |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Width | 22 cm |
| Depth | 15 cm |
| Height | 3.2 cm |
| Weight | 474 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% |
