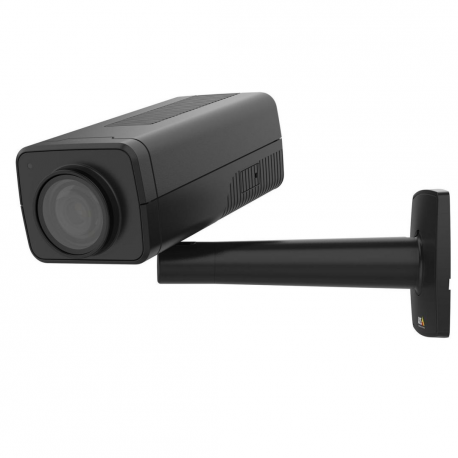

AXIS Q1715 - Network surveillance camera - block - colour (Day&Night) - 1920 x 1080 - 1080p - auto iris - motorized - audio - HDMI, HD-SDI - GbE - MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 4
AXIS Q1715 - Network surveillance camera - block - colour (Day&Night) - 1920 x 1080 - 1080p - auto iris - motorized - audio - HDMI, HD-SDI - GbE - MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 4
Manufacturer
•AXIS
Reference
•02220-001
Article
•1880753
Intrastat
•84716070
Shipping weight
•0.65 kg
Total quantity in stocks
•1
Nearest delivery
•20.04.2026
Device Type
Network surveillance camera
Audio Support
Yes: two-way audio capability
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Form Factor
Block
Connectivity Technology
Wired
Width
8 cm
Depth
19.5 cm
Height
6.6 cm
Weight
650 g
Type
Colour - Day&Night - fixed
Digital Video Format
MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2
Max Digital Video Resolution
1920 x 1080
Motion Detection
Yes
Video Modes
1080p
Exposure Range
2 sec - 1/66500 sec
Minimum Illumination
0.1 lux - colour - F1.5 - 50 IRE ¦ 0.02 lux - B&W - F1.5 - 50 IRE
Frame Rate (max)
60 frames per second
RAM
2 GB
Flash Memory
1 GB
Features
White balance, saturation control, brightness control, contrast control, image mirror, heater, multi-streaming, notification picture to E-mail, digital PTZ function, notification picture to FTP, password protection, distortion correction function, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Defog, Zipstream technology, Pelco Protocol, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Line Crossing Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, Remote Back Focus, signed firmware, secure boot, TPM 2.0 module, Audio Noise Reduction, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, brute force delay protection, ONVIF (Profile M) support, AXIS Object Analytics
Type
RGB CMOS 1/2.8"
Type
Motorized zoom
Optical Zoom
21 x
Focal Length
4 mm - 84.6 mm
Lens Iris
F/1.6-4.5 auto iris (P-Iris)
Focus Adjustment
Automatic
Horizontal Field of View (degree)
3.6 - 76
Vertical Field of View (degree)
2.2 - 42
Video
HDMI, HD-SDI
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT
Control Interface
RS-485, RS-422
Ports
LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line-in/microphone - 3.5 mm jack ¦ Serial RS-485/RS-422 - terminal block ¦ HDMI ¦ HD-SDI - BNC
Supported Memory Cards
SD Memory Card
Included Accessories
Stand, connector kit, Resistorx L-key, Torx T20 screw driver
Compliant Standards
CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, NEMA TS-2, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, EN 55035, CISPR 35, IEEE 802.1x, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547
Colour
Black
Power Requirements
DC 10 - 28 V / PoE Plus Class 4
Power Device
12 Watt
Software Included
Windows decoder 1-user licence
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 85% (non-condensing)
