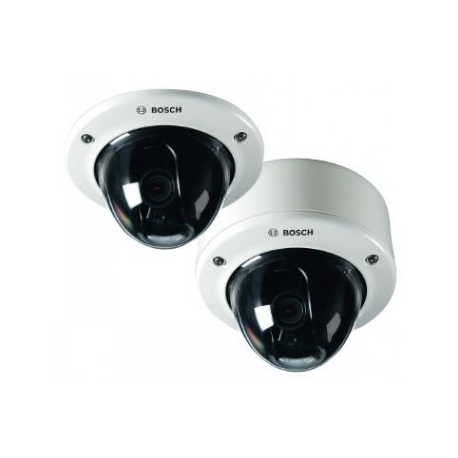

Bosch FLEXIDOME IP starlight 7000 VR NIN-73023-A3AS - Network surveillance camera - dome - outdoor - dustproof / waterproof / vandal-proof - colour (Day&Night) - 2 MP - 1920 x 1080 - 720p, 1080p - board mount - auto iris - motorized - audio - composite - LAN 10 / 100 - MJPEG, H.264 - DC 12 V / PoE Class 3
images are for illustrative purposes only
New
Article: 1750698 Intrastat: 84716070 SKU: NIN-73023-A3AS
Pricing and stock details are available to registered users only.
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Surface mount |
| Connectivity Technology | Wired |
| Width | 15.8 cm |
| Depth | 15.8 cm |
| Height | 14.1 cm |
| Weight | 1.28 kg |
| Type | Colour - Day&Night - fixed dome - outdoor - dustproof / waterproof / vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 720p, 1080p |
| Exposure Range | 1/25 sec - 1/15000 sec |
| Minimum Illumination | 0.0075 lux - colour - F1.2 - 30 IRE - shutter 1/25 sec ¦ 0.0011 lux - B&W - F1.2 - 30 IRE - shutter 1/25 sec |
| Digital Video Capture Resolution | 1280 x 720, 352 x 240, 704 x 480, 1920 x 1080, 768 x 432, 854 x 480, 432 x 240, 256 x 144, 512 x 288 |
| Frame Rate (max) | 60 frames per second |
| Supported Image Formats | JPEG |
| Features | Manual white balance, backlight compensation, sharpness control, saturation control, Power over Ethernet, contrast control, automatic electronic shutter, Auto MDI-X, Privacy Mask Function, ePTZ, Intelligent Video Analysis (IVA), quad video stream, iSCSI support, auto-rotation mode, Region of Interest (ROI), intelligent Dynamic Noise Reduction (iDNR), Content-Based Imaging Technology, intelligent Automatic Exposure (iAE), High Dynamic Range (HDR), Defog, auto white balance, ONVIF (Profile S) support, cross line detection, Opto-Electronic Conversion Function |
| Type | 2 MP CMOS 1/2.8" |
| Effective Pixels | 1920 x 1080 |
| Type | Board mount - motorized zoom |
| Optical Zoom | 3 x |
| Focal Length | 3 mm - 9 mm |
| Lens Iris | Auto iris |
| Focus Adjustment | Automatic, motorised |
| Horizontal Field of View (degree) | 37 - 117 |
| Vertical Field of View (degree) | 21 - 59 |
| Range (degree) | 360 |
| Range (degree) | 90 |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, Telnet, SSL, SNTP, QOS, IGMPv2, IGMPv3, APIPA, EAP |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 1 |
| Ports | LAN/power - RJ-45 ¦ Composite video - BNC ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Compliant Standards | UL, NEMA Type 4X, UL 60950-1 Second Edition, WEEE, FCC CFR47 Part 15 B, cULus, IK10, IP66, EAC, China RoHS, EN 50121-4:2006, EN50130-4:2011, EN 55032:2012, EN 62368-1, IEC 62676-2-3, UL 62368-1 Second Edition, EN50130-5 Class IV, EN 50132-5-2, CAN/CSA-C22.2 No. 60950-1, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Colour | Black, white, RAL 9010, clear lower dome |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 7.2 Watt |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 5 - 93% |
