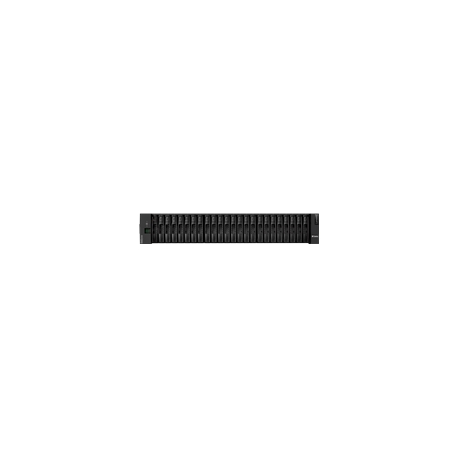

Lenovo ThinkSystem DE4000H Hybrid 2U24 SFF controller enclosure - Hard drive array - 24 bays (SAS-3) - 16Gb Fibre Channel (external) - rack-mountable - 2U

  • LENOVO THINKSYSTEM DE4000H (64GB CACHE) FC HYBRID FLASH ARRAY 2U24 SFF
images are for illustrative purposes only

New

Article: 1804649 Intrastat: 84717020 SKU: 7Y751007EA
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeHard drive array
Enclosure TypeRack-mountable - 2U
LocalisationEuropean Union
Supported Devices / Modules Qty24
Supported DrivesSAS-3
HDD Array External Interface16Gb Fibre Channel
TypeRAID
Interface TypeSAS 12Gb/s
Data Transfer Rate1.2 GBps
Cache / Buffer Size (Max)64 GB
RAID LevelRAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10
TypeNo HDD
Expansion Bays24 (total) / 24 (free) x hot-swap - 2.5" SFF
Expansion Slots2 (total) / 0 (free) x expansion slot
Interfaces4 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644) 12 x 16Gb Fibre Channel (input) - SFP+ 2 x Ethernet 1000 (management) - RJ-45 2 x serial (management) - 5 pin Micro-USB Type A 2 x serial (management) - RJ-45
FeaturesApplication snapshots, Dynamic Disk Pool (DDP) Technology
Cables Included1 x micro-USB to USB cable - 2 m 2 x power cable (C13-C14) - 1.5 m
Compliant StandardsBSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Included AccessoriesRack mounting kit
Power Device2 x internal power supply - hot-plug
Max Supported Qty2
Power RedundancyYes
Voltage RequiredAC 120/230 V - 50/60 Hz
Power Provided913 Watt
80 PLUS Certification80 PLUS Platinum
Width44.9 cm
Depth55.3 cm
Height8.5 cm
Weight27.6 kg
Service & SupportLimited warranty - 3 years - on-site
Min Operating Temperature5 °C
Max Operating Temperature45 °C
Humidity Range Operating8 - 90% (non-condensing)
Disks
