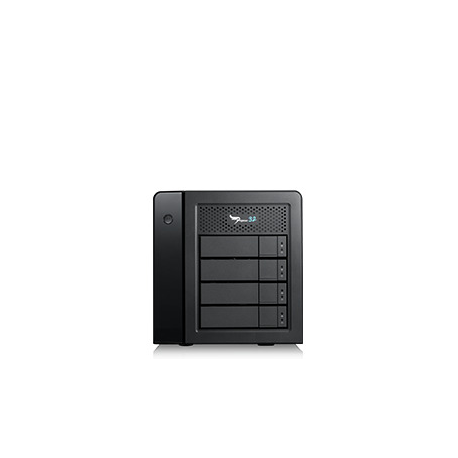

Promise Pegasus32 R4 - Hard drive array - 16 TB - 4 bays (SATA-600) - HDD 4 TB x 4 - Thunderbolt 3, USB 3.2 Gen 2 (external)
images are for illustrative purposes only
New
Article: 3200849 Intrastat: 84717020 SKU: F40P2R400000001
Pricing and stock details are available to registered users only.
| Device Type | Hard drive array |
| Built-in Devices | Led panel |
| Installed Devices / Modules Qty | 4 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 |
| Total Array Capacity | 16 TB |
| Max Supported Capacity | 56 TB |
| HDD Array External Interface | Thunderbolt 3, USB 3.2 Gen 2 |
| CPU | 1 x 8067 |
| Installed Size | 1 GB |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 1E |
| Type | HDD - hot-swap |
| Capacity | 4 x 4 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Expansion Bays | 4 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces | 2 x Thunderbolt 3 / USB 3.2 Gen 2 - 24 pin USB-C 1 x DisplayPort - 20 pin DisplayPort |
| OS Required | Windows 10 64-bit Edition, Apple macOS 10.14 or later |
| Features | Built-in cooling fan, daisy chaining support, kensington security slot |
| Cables Included | 1 x Thunderbolt 3 / USB-C cable - 70 cm |
| Compliant Standards | TUV, VCCI, BSMI, ICES-003 Class B, FCC, cTUVus, RCM, MSIP, RoHS 2011/65/EU, BIS, EMC 2014/30/EU, LVD 2014/35/EU, SPRING, DisplayPort 1.4 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 250 Watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Width | 18.7 cm |
| Depth | 24.5 cm |
| Height | 19.2 cm |
| Weight | 6.8 kg |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
