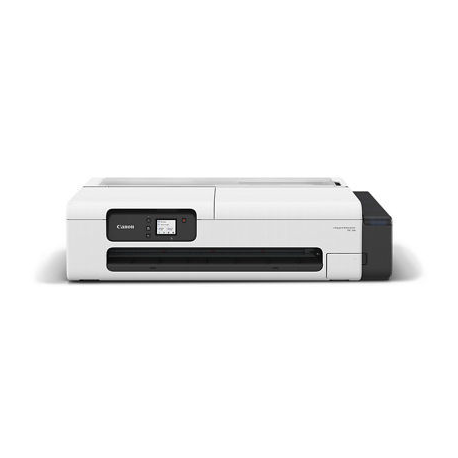

Canon imagePROGRAF TC-20 - 24" large-format printer - colour - ink-jet - Roll A1 (61.0 cm) - 2400 x 1200 dpi - USB 2.0, LAN, Wi-Fi(n)
images are for illustrative purposes only
New
Article: 3143358 Intrastat: 84431970 SKU: 5815C003
Pricing and stock details are available to registered users only.
| Printer Type | 24" large-format printer - ink-jet - colour |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Ink Palette Supported (Colours) | 4-ink - cyan, magenta, yellow, black |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, black) |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, LAN, Wi-Fi(n) |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Colour) | 2400 x 1200 dpi |
| Language Simulation | SG Raster (Swift Graphic Raster) |
| Printer Features | Borderless printing, Canon L-COA |
| RAM Installed (Max) | 1 GB |
| Media Type | Plain paper |
| Max Media Size | Roll A1 (61.0 cm) |
| Min Media Size (Custom) | 297 mm |
| Max Media Size (Custom) | 610 mm |
| Media Sizes | Roll A2 (42 cm), Roll (43.2 cm), Roll A1 (59.4 cm), Roll (61 cm), Roll B2, Roll A3 (29.7 cm x 4 m), Roll A2 plus (43.2 cm), Roll (45.7 cm), Roll B3 |
| Media Thickness Range | 0.08 mm - 0.28 mm |
| Media Feeders | 1 x automatic |
| Networking | Print server |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
| Consumables Included | 1 x ink bottle (pigmented cyan) - 70 ml - Canon PFI-050 C ¦ 1 x ink bottle (pigmented magenta) - 70 ml - Canon PFI-050 M ¦ 1 x ink bottle (pigmented yellow) - 70 ml - Canon PFI-050 Y ¦ 1 x ink bottle (pigmented black) - 70 ml - Canon PFI-050 BK ¦ 1 x printhead - Canon PF-08 |
| Features | PIXMA Cloud Link |
| Compliant Standards | CB, UKCA |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 28 Watt |
| Power Consumption Sleep | 2.4 Watt |
| Software Included | Direct Print Plus, PosterArtist Lite (PC Only) |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows 7 / 8.1 / 10 (32 bit), Apple macOS 10.14.6 or later, Microsoft Windows 11, Microsoft Windows Server 2008 R2/ 2012 / 2012 R2 / 2016 / 2019 / 2022 |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR | Yes |
| Min Operating Temperature | 15 °C |
| Max Operating Temperature | 30 °C |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Sound Emission (Idle) | 35 dBA |
| Sound Emission (Operating) | 42.5 dBA |
| Width | 96.8 cm |
| Depth | 52.5 cm |
| Height | 24.5 cm |
| Weight | 32 kg |
| Width (Shipping) | 112 cm |
| Depth (Shipping) | 72.6 cm |
| Height (Shipping) | 40.6 cm |
| Weight (Shipping) | 43 kg |
