Broadcom MegaRAID MR416i-p - Storage controller (RAID) - 16 Channel - SATA 6Gb / s / SAS 12Gb / s / PCIe 4.0 (NVMe) - RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 4.0 x8 - for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL365 Gen10, DL380 Gen10, DL385 Gen10

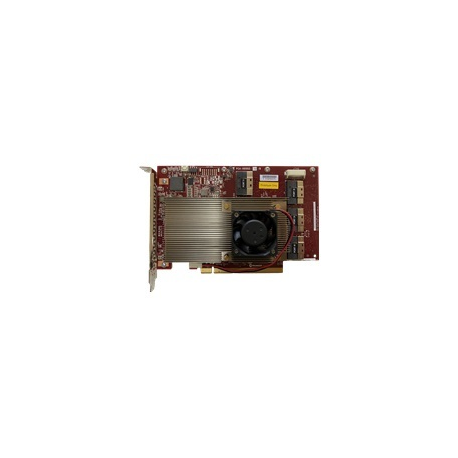

images are for illustrative purposes only
New
Article: 1886504 SKU: P06367-B21
Pricing and stock details are available to registered users only.
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Buffer Size | 4 GB |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 16 |
| Max Storage Devices Qty | 240 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Interfaces | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Connections | 1 x PCIe 4.0 x8 |
| Software Included | StorCLI, HII (UEFI Human Interface Infrastructure), UEFI System Utilities (storage configuration), MegaRAID Storage Administrator, Redfish (Inventory and Events) |
| OS Required | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware ESXi |
| Service & Support | Limited warranty - parts - 3 years |
| Depth | 15.7 cm |
| Weight | 146 g |
| Designed For | HPE ProLiant DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus (v2), DL385 Gen10 Plus Entry (v2) |
