Intel RAID Controller RS3DC080 - Storage controller (RAID) - 8 Channel - SATA 6Gb / s / SAS 12Gb / s low profile - 12 GBps - RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 3.0 x8

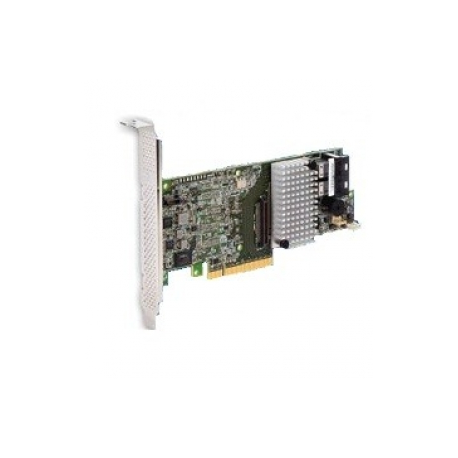

images are for illustrative purposes only
New
Article: 1221937 SKU: RS3DC080934643
Pricing and stock details are available to registered users only.
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 GBps |
| Buffer Size | 1 GB |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 8 |
| Max Storage Devices Qty | 128 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor | LSI LSI3108 1.2 GHz |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) ( internal ) |
| Features | Online Capacity Expansion (OCE) |
| Software Included | Intel RAID Flash Utilities, Intel RAID Command Line Tool, Intel RAID Web Console 2 |
| Depth | 16.8 cm |
| Height | 6.4 cm |
