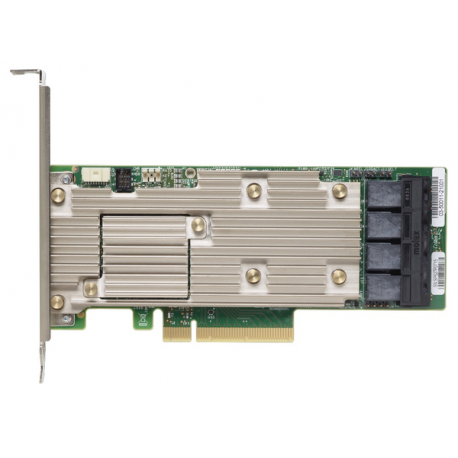

Lenovo ThinkSystem 930-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - for ThinkSystem SR530 7X07; SR550; SR570; SR590; SR630; SR650; SR850; SR860; SR950; ST550
Lenovo ThinkSystem 930-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - for ThinkSystem SR530 7X07; SR550; SR570; SR590; SR630; SR650; SR850; SR860; SR950; ST550
Manufacturer
•LENOVO
Reference
•4Y37A09721
Article
•2831599
Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Buffer Size
8 GB
Supported Devices
Hard drive, disk array (RAID), solid state drive
Channel Qty
16
Max Storage Devices Qty
16
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor
LSI LSISAS3516
Interfaces
4 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Features
CacheVault flash cache protection, FastPath, SafeStore
Compliant Standards
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
OS Required
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
20 - 90% (non-condensing)
Designed For
Lenovo ThinkSystem SR530 7X07 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST550
