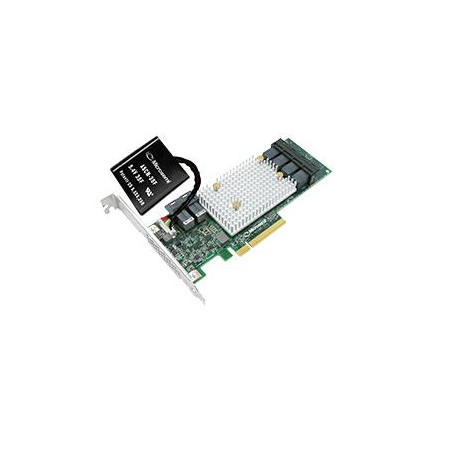

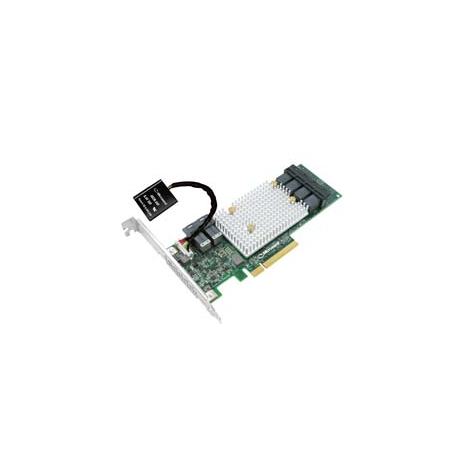

Microchip Adaptec SmartRAID 3154-24i - Storage controller (RAID) - 24 Channel - SATA 6Gb/s / SAS 12Gb/s low profile - 12 Gbit/s - RAID 0, 1, 5, 6, 10, 50, 60, 1ADM, 10ADM - PCIe 3.0 x8
Microchip Adaptec SmartRAID 3154-24i - Storage controller (RAID) - 24 Channel - SATA 6Gb/s / SAS 12Gb/s low profile - 12 Gbit/s - RAID 0, 1, 5, 6, 10, 50, 60, 1ADM, 10ADM - PCIe 3.0 x8
Manufacturer
•MICROSEMI
Reference
•2294700-R
Article
•1729827
Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Buffer Size
4 GB
Supported Devices
Tape drive, disk array (RAID)
Channel Qty
24
Max Storage Devices Qty
256
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, 1ADM, 10ADM
Interfaces
6 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Included Accessories
Low-profile bracket
Features
Online Capacity Expansion (OCE), Native Command Queuing (NCQ), SCSI Enclosure Services (SES), SecureBoot, HBA Mode, dynamic caching algorithm, RAID Level Migration, dynamic sector repair, Background RAID Initialization, Staggered Drive Spin Up, Bootable RAID Array support, flash backup module, S.M.A.R.T. support, 4K Native Sector support
MTBF
1,700,000 hours
Compliant Standards
UL, VCCI, C-Tick, FCC, RoHS, KCC
OS Required
SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Ubuntu, VMware ESXi, Citrix XenServer
Service & Support
Limited warranty - 3 years
Depth
16.7 cm
Height
6.4 cm
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
