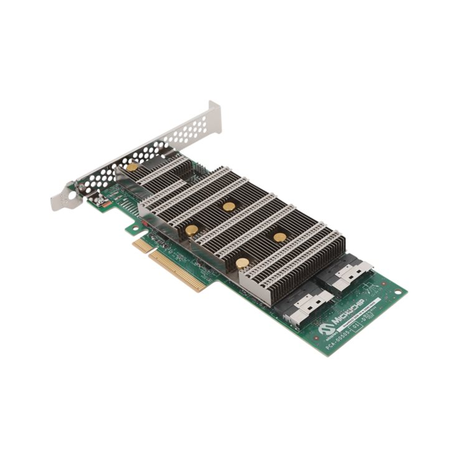

Microchip Adaptec SmartRAID 3200 Series 3258-16i / e - Storage controller (RAID) - 16 Channel - SATA 6Gb / s / SAS 24Gb / s / PCIe 4.0 (NVMe) - RAID 0, 1, 5, 6, 10, 50, 60 - PCIe 4.0 x8
images are for illustrative purposes only
New
Article: 1866168 SKU: 3258C16IXS
Pricing and stock details are available to registered users only.
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x8 |
| Interface | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) |
| Data Transfer Rate | 24 Gbit/s |
| Buffer Size | 8 GB |
| Supported Devices | Hard drive, disk array (RAID), solid state drive |
| Channel Qty | 16 |
| Max Storage Devices Qty | 256 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Interfaces | SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) (internal) |
| Features | Native Command Queuing (NCQ), SecureBoot, HBA Mode, RAID Level Migration, dynamic sector repair, Bootable RAID Array support, S.M.A.R.T. support, Zero Maintenance Cache Protection (ZMCP), maxCrypto |
| Compliant Standards | UL, VCCI, C-Tick, FCC, RoHS, KCC, CNS |
| Software Included | Adaptec maxView Storage Manager |
| OS Required | SunSoft Solaris, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Debian Linux, Red Hat Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Oracle Linux, Windows 10 |
| Depth | 16.765 cm |
| Height | 6.89 cm |
