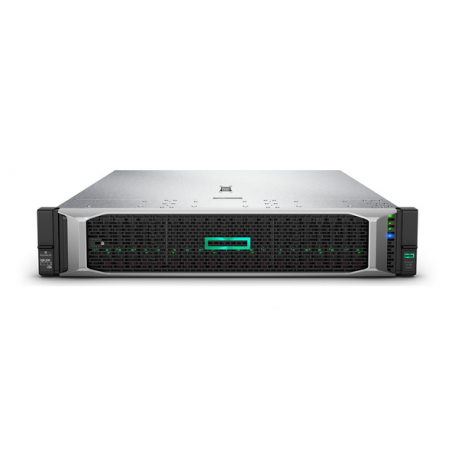

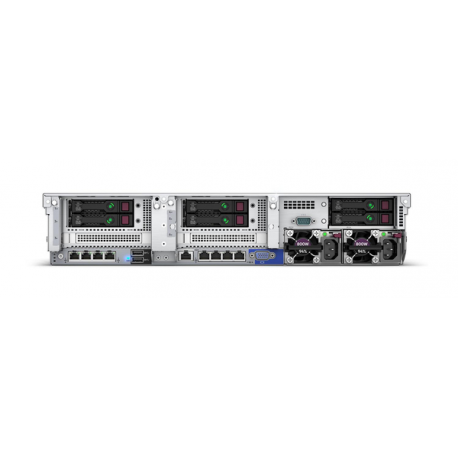

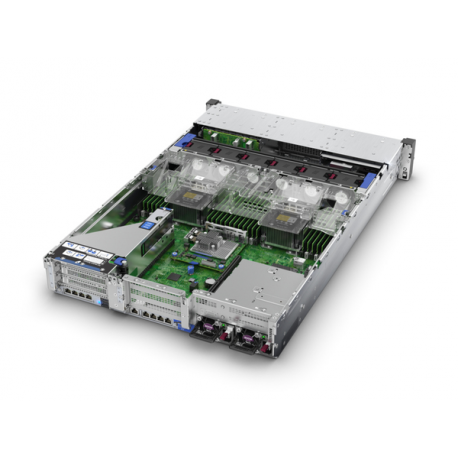

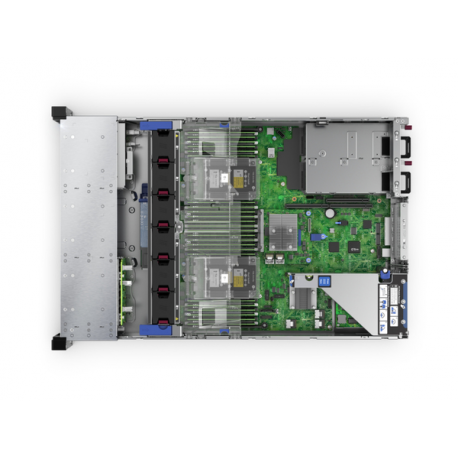

HPE ProLiant DL380 Gen10 Network Choice - Server - rack-mountable - 2U - 2-way - 1 x Xeon Silver 4214R / 2.4 GHz - RAM 32 GB - SATA / SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
images are for illustrative purposes only
New
Article: 1722416 SKU: P24842-B21
Pricing and stock details are available to registered users only.
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Processor model | 4214R |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 12 |
| Processor cache | 16.5 MB |
| Motherboard chipset | Intel® C621 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 100 W |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 79 °C |
| Maximum internal memory supported by processor | 1024 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Execute Disable Bit | Y |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | SSE4.2,AVX,AVX 2.0,AVX-512 |
| Scalability | 2S |
| Embedded options available | Y |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 1536 GB |
| Memory slots | 24 DIMM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum storage capacity | 72 TB |
| RAID support | Y |
| Optical drive type | N |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID levels | 0,1,1 ADM,5,6,10 ADM,10,50,60 |
| Hot-Plug support | Y |
| On-board graphics adapter | Y |
| Maximum graphics adapter memory | 16 MB |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI Express slots version | 3.0 |
| Chassis type | Rack (2U) |
| Product colour | Black, Metallic |
| Rack mounting | Y |
| Remote administration | iLO 5 ASIC |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system installed | N |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 and 15 SP1 (incl. Xen) |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel Trusted Execution Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor ARK ID | 197100 |
| Redundant power supply (RPS) support | Y |
| Power supply | 800 W |
| Width | 445.5 mm |
| Depth | 730.3 mm |
| Height | 87.4 mm |
| Weight | 14.8 kg |
