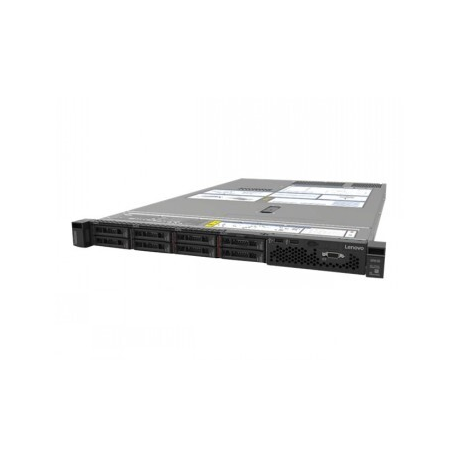

Lenovo ThinkSystem SR530 7X08 - Server - rack-mountable - 1U - 2-way - 1 x Xeon Silver 4208 / 2.1 GHz - RAM 32 GB - no HDD - Matrox G200 - GigE - no OS - monitor: none
images are for illustrative purposes only
New
Article: 2829806 SKU: 7X08A0BFEA
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability | 2-way |
| Localisation | Region: EMEA |
| CPU | Intel Xeon Silver 4208 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Chipset Type | Intel C622 |
| Installed Size | 11 MB |
| Cache Per Processor | 11 MB |
| Installed Size | 32 GB |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 12 (Total) / 11 (empty) |
| Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, Patrol Scrubbing, Demand Scrubbing, Single Device Data Correction (SDDC) |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 384 GB registered - ECC 768 GB Load-Reduced - ECC |
| Type | No HDD |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Slots | 1 (total) / 1 (free) x LAN-on-Motherboard (LOM) 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile |
| Interfaces | 3 x USB 3.0 (1 front, 2 rear) 1 x USB 2.0 (1 in front) 1 x VGA 1 x management - RJ-45 2 x LAN (Gigabit Ethernet) - RJ-45 |
| Included Accessories | Tool-less rail kit, C13-C14 rack power cable (2.8 m) |
| Compliant Standards | TUV GS, BSMI, CISPR 22 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CCC, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, EAC, KN22 Class A, NMB-3 Class A, GB 4943.1, BIS, EK1-ITB2000, EN 55022 Class A, CNS 13438 Class A, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, CAN/CSA-C22.2 No. 60950-1 |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Width | 43.5 cm |
| Depth | 75 cm |
| Height | 4.3 cm |
| Weight | 10.2 kg |
| Shipping Width | 58.7 cm |
| Shipping Depth | 99.8 cm |
| Shipping Height | 22.5 cm |
