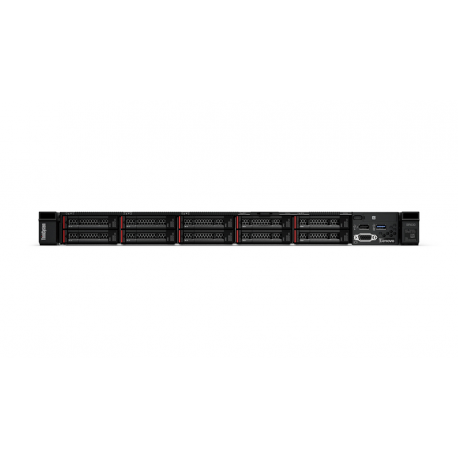

Lenovo ThinkSystem SR630 7X02 - Server - rack-mountable - 1U - 2-way - 1 x Xeon Silver 4215R / 3.2 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - no OS - monitor: none
images are for illustrative purposes only
New
Article: 1808395 SKU: 7X02A0ELEA
Pricing and stock details are available to registered users only.
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Processor model | 4215R |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 130 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 79 °C |
| Maximum internal memory supported by processor | 1024 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Execute Disable Bit | Y |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | SSE4.2,AVX,AVX 2.0,AVX-512 |
| Scalability | 2S |
| Embedded options available | Y |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| RAID support | Y |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| RAID levels | 0,1,5,6,10,50,60 |
| Supported RAID controllers | 930-8i 2GB |
| Hot-swap | Y |
| On-board graphics adapter model | Not available |
| Ethernet LAN | Y |
| Cabling technology | 10/100/1000Base-T(X) |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| PCI Express slots version | 3.0 |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Rack mounting | Y |
| Performance management | XClarity |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 1.2 |
| Compatible operating systems | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux 7; SUSE Linux Enterprise Server 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7. |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel Trusted Execution Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor ARK ID | 199349 |
| Redundant power supply (RPS) support | Y |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
| Width | 434 mm |
| Depth | 715 mm |
