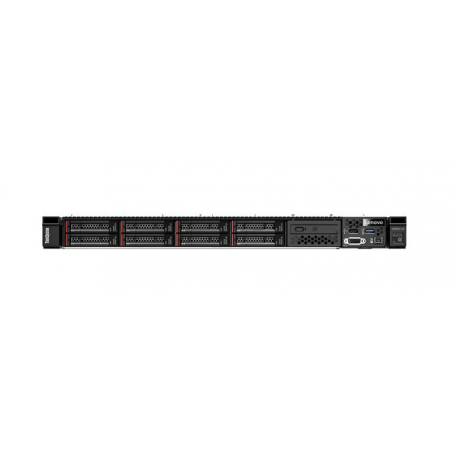

Lenovo ThinkSystem SR630 V2 7Z71 - Server - rack-mountable - 1U - 2-way - 1 x Xeon Silver 4309Y / 2.8 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - no OS - monitor: none
images are for illustrative purposes only
New
Article: 3240268 SKU: 7Z71A06GEA
Pricing and stock details are available to registered users only.
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Processor model | 4309Y |
| Processor frequency | 2.8 GHz |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor boost frequency | 3.6 GHz |
| Efficient-core base frequency | 2.8 GHz |
| Performance-core base frequency | 2.8 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory ranking | 2 |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| RAID support | Yes |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| Supported RAID controllers | 9350-8i |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| On-board graphics card | Yes |
| On-board graphics card model | Matrox G200 |
| Maximum graphics card memory | 16 MB |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
| Redundant fans support | Yes |
| Performance management | XClarity Enterprise |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2016 Microsoft Windows Server 2019 Microsoft Windows Server 2022 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.2 Red Hat Enterprise Linux 8.3 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 Xen SP2 VMware ESXi 6.7 U3 VMware ESXi 7.0 U2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 1 |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 8 - 90% |
| Width | 440 mm |
| Depth | 773 mm |
| Height | 43 mm |
