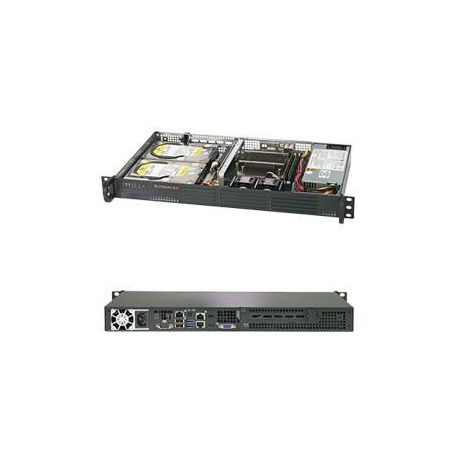

Supermicro SuperServer 5019C-L - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - no HDD - AST2500 - GigE - no OS - monitor: none - black
Supermicro SuperServer 5019C-L - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - no HDD - AST2500 - GigE - no OS - monitor: none - black
Manufacturer
•SUPERMICRO
Reference
•SYS-5019C-L
Article
•1720470
Built-in processor
N
Motherboard chipset
Intel C242
Processor socket
LGA 1151 (Socket H4)
Number of processors supported
1
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
Number of DIMM slots
2
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB
Maximum internal memory
64 GB
Supported RDIMM clock speeds
2133,2400,2666 MHz
ECC
Y
Hot-swap HDD bays
N
Number of 3.5" bays
2
Storage drive sizes supported
2.5,3.5"
Supported storage drive interfaces
Serial ATA III
RAID levels
0,1,5,10
On-board graphics adapter model
Aspeed AST2500
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
LAN controller
Intel® I210-AT
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
IPMI LAN (RJ-45) port
Y
VGA (D-Sub) ports quantity
1
COM ports quantity
1
Number of SATA III connectors
4
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
1
PC health monitoring
CPU, Fan, Temperature
Sustainability certificates
RoHS
BIOS type
UEFI
BIOS memory size
256 Mbit
ACPI version
6.0
UEFI version
2.7
Plug and Play
Y
BIOS features
PCI 3.0,Plug & Play,SMBIOS 2.7,UEFI
Chassis type
Rack (1U)
Product colour
Black
LED indicators
HDD, Network, Power, System
On/off switch
Y
Reset button
Y
Number of fans
2 fan(s)
Fan diameter
4 cm
Power supply
200 W
Number of main power supplies
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+5 V)
8 A
DC output current (+12 V)
16 A
80 PLUS certification
80 PLUS Gold
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Width
437 mm
Depth
249 mm
Height
43 mm
