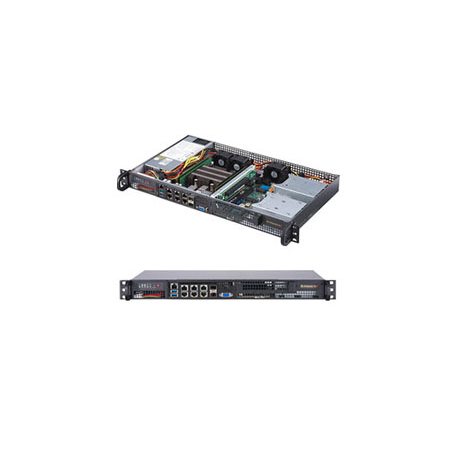

Supermicro SuperServer 5019D-FN8TP - Server - rack-mountable - 1U - 1 x Xeon D-2146NT - RAM 0 GB - no HDD - AST2500 - GigE, 10 GigE - no OS - monitor: none - black
images are for illustrative purposes only
New
Article: 1614397 SKU: SYS-5019D-FN8TP
Pricing and stock details are available to registered users only.
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Internal Bays Qty | 2 |
| Colour | Black |
| CPU | Intel Xeon D-2146NT |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Installed Size | 0 GB / 512 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 4 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 512 GB Load-Reduced ¦ 256 GB registered |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet, 2 x SFP+ |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | ACPI support, KVM over IP support |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M) ¦ 1 (total) / 1 (free) x Mini PCIe 2.0/mSATA ¦ 1 (total) / 1 (free) x M.2 Card (Key B) |
| Interfaces | 4 x LAN (Gigabit Ethernet) ¦ 1 x management (NIC) - RJ-45 ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.0 ¦ 1 x VGA |
| Included Accessories | Air shroud, riser card |
| Cables Included | Serial ATA cable (2 pcs.) |
| Compliant Standards | Plug and Play, RoHS, ACPI 5.0 |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 200 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Power Factor Correction | Yes |
| OS Provided | No operating system |
| Service & Support | Limited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year |
| Width | 43.7 cm |
| Depth | 24.9 cm |
| Height | 4.3 cm |
| Weight | 3.63 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
