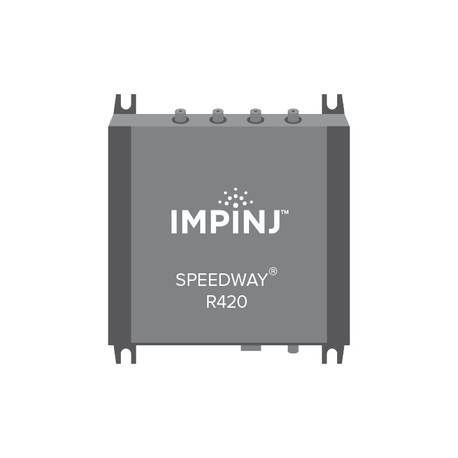

Impinj Speedway R420 - RFID reader - USB, Ethernet (PoE) - 902-928 MHz
images are for illustrative purposes only
New
Article: 1799415 Intrastat: 84719000 SKU: IPJ-REV-R420-GX12M1
Pricing and stock details are available to registered users only.
| Device Type | RFID reader |
| Interface Type | USB, Ethernet (PoE) |
| Frequency | 902-928 MHz |
| Width | 17.5 cm |
| Depth | 3 cm |
| Height | 19 cm |
| Weight | 700 g |
| Interfaces | 4 x antenna - RP-TNC ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x management - RS-232 - RJ-45 ¦ 1 x serial - GPIO - 15 pin D-Sub (DB-15) |
| Connections | 1 x network - 10Base-T/100Base-TX (PoE) - RJ-45 ¦ 1 x USB - 4 pin USB Type B |
| Device Features | Power over Ethernet (PoE) |
| Compliant Standards | RoHS, MIL-STD 810G, IP52, ISO 18000-6C, TLS v1.2, IEEE 802.3af, IEEE 802.1x, EPC Class 2 Gen 2 |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
