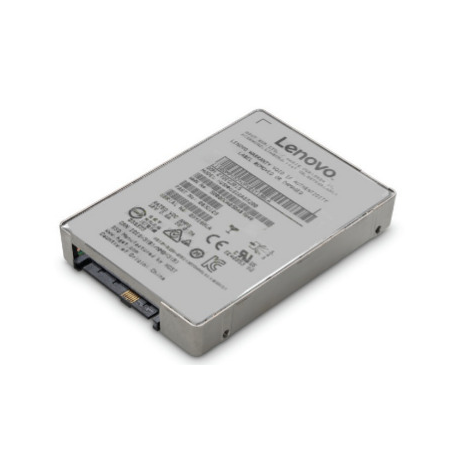

Lenovo Enterprise Performance - Solid state drive - encrypted - 400 GB - 2.5" - SAS 12Gb / s - 256-bit AES - for ThinkAgile VX 2U Certified Node; 2U4N Certified Node; ThinkAgile VX3520-G Appliance
Lenovo Enterprise Performance - Solid state drive - encrypted - 400 GB - 2.5" - SAS 12Gb / s - 256-bit AES - for ThinkAgile VX 2U Certified Node; 2U4N Certified Node; ThinkAgile VX3520-G Appliance
Manufacturer
•LENOVO
Reference
•7N47A00124
Article
•2980458
Intrastat
•84717050
Shipping weight
•0.14 kg
Device Type
Solid state drive
Capacity
400 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D multi-level cell (MLC)
Form Factor
2.5"
Interface
SAS 12Gb/s
Features
Error Correction Code (ECC), Exclusive-OR (XOR), Sanitize Instant Erase (SIE), S.M.A.R.T.
Width
70 mm
Depth
100 mm
Height
15 mm
Weight
140 g
Drive Writes Per Day (DWPD)
10
SSD Endurance
7 PB
Drive Transfer Rate
1.2 GBps (external)
Internal Data Rate
1076 MBps (read) / 1014 MBps (write)
4KB Random Read
240000 IOPS
4KB Random Write
166000 IOPS
Average Latency
85 µs
MTBF
2,500,000 hours
Non-Recoverable Errors
1 per 10^17
Interfaces
1 x SAS 12 Gb/s
Compatible Bay
2.5"
Power Consumption
9 Watt (typical)
OS Required
Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 11 for x86, Red Hat Linux Enterprise Server 5, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Red Hat Linux Enterprise Server 6, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 5 Server with Xen x64 Edition, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), Microsoft Windows Server 2016, VMware vSphere 5.1 (ESXi), VMware vSphere 6.5 (ESXi)
Compliant Standards
CSA, UL, C-Tick, KCC, EN 60950-1 Second Edition, CNS13438:2006, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, VCCI V-3/2013.04 Class B, REACH 2006/1907
Service & Support
Limited warranty - replacement - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (operating)
1500 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 g @ 5-700 Hz
Designed For
Lenovo ThinkAgile VX 2U Certified Node (2.5") ¦ Lenovo ThinkAgile VX 2U4N Certified Node (2.5") ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 (2.5") ¦ Lenovo ThinkSystem SD530 (2.5") ¦ Lenovo ThinkSystem SN550 (2.5") ¦ Lenovo ThinkSystem SN850 (2.5") ¦ Lenovo ThinkSystem SR570 (2.5") ¦ Lenovo ThinkSystem SR590 (2.5") ¦ Lenovo ThinkSystem SR630 (2.5") ¦ Lenovo ThinkSystem SR650 (2.5") ¦ Lenovo ThinkSystem SR850 (2.5") ¦ Lenovo ThinkSystem SR860 (2.5") ¦ Lenovo ThinkSystem SR950 (2.5")
