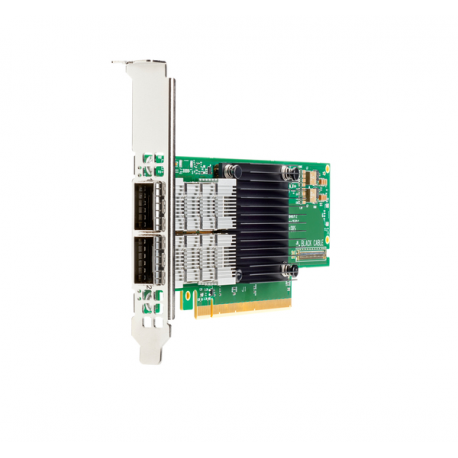

HPE InfiniBand HDR MCX653106A-HDAT - Network adapter - PCIe 4.0 x16 low profile - 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2 - for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
HPE InfiniBand HDR MCX653106A-HDAT - Network adapter - PCIe 4.0 x16 low profile - 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2 - for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
Manufacturer
•HPE
Reference
•P31324-B21
Article
•3000394
Intrastat
•85176990
Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 4.0 x16
PCI Specification Revision
PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Ports
200Gb Ethernet / 200Gb Infiniband QSFP56 x 2
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand
Data Transfer Rate
200 Gbps
Features
Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
Interfaces
2 x 200Gb Ethernet / 200Gb Infiniband - QSFP56
Compliant Standards
CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1
OS Required
FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Service & Support
Limited warranty - parts - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95% (non-condensing)
Designed For
HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus ¦ HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
