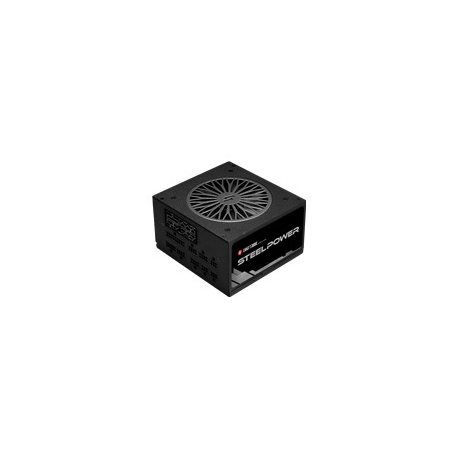

Chieftronic SteelPower Series BDK-750FC - Power supply (internal) - ATX12V 2.3/ EPS12V - 80 PLUS Bronze - AC 100-240 V - 750 Watt - active PFC
images are for illustrative purposes only
New
Article: 1858198 Intrastat: 85044090 SKU: BDK-750FC
Pricing and stock details are available to registered users only.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3/ EPS12V |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 3 x 4 PIN internal power 6 x 15 pin Serial ATA power 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +5V - 20 A +3.3V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 2.5 A |
| Power Factor (PF) | 0.9 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Bronze |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP), LLC Half Bridge Topology |
| Compliant Standards | CB, FCC, RoHS, ErP Ready, EAC, Interseroh, TUV Rheinland |
| Service & Support | Limited warranty - 5 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.7 kg |
| Shipping Weight | 2.24 kg |
