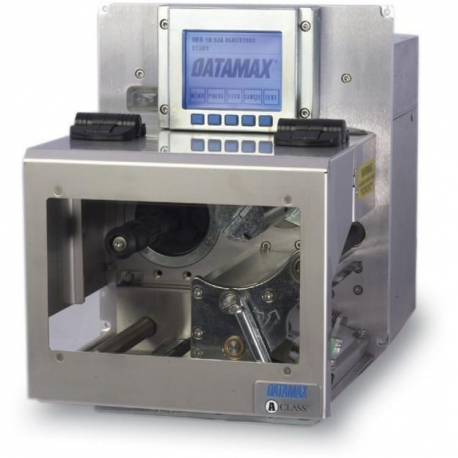

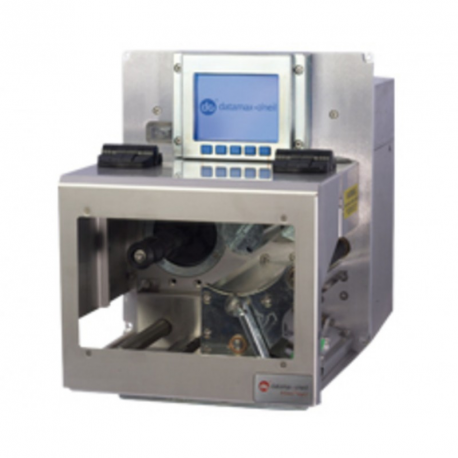

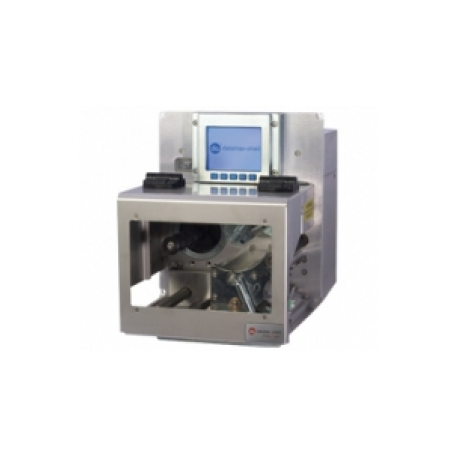

Datamax A-Class Mark II A-4212 - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 203 dpi - up to 304 mm / sec - parallel, USB, LAN, serial
Datamax A-Class Mark II A-4212 - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 203 dpi - up to 304 mm / sec - parallel, USB, LAN, serial
Manufacturer
•DATAMAX
Reference
•LB2-00-46000000
Article
•467155
Intrastat
•84433210
Shipping weight
•15.3 kg
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 304 mm/sec - max speed - 203 dpi
Connectivity Technology
Wired
Interface
Parallel, USB, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, Intermec Printer Language (IPL), ILPC (International Language Printing Capability)
Fonts
CG Times, CG Triumvirate, OCR
Features
Realtime clock
Keyboard
5 keys
Barcodes
Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, Plessey
Printer Features
Left-hand orientation
RAM Installed (Max)
16 MB
Flash Memory
8 MB
Media Type
Labels, continuous forms, fanfold paper, tag stock
Max Media Size
Roll (11.8 cm)
Min Media Size (Custom)
25.4 mm
Max Media Size (Custom)
118 mm
Media Sizes
Roll (11.8 cm)
Max Printing Width
104 mm
Max Printing Length
2500 mm
Media Thickness Range
0.06 mm - 0.25 mm
Media Feeders
1 x manual - 1 roll - Roll (11.8 cm)
Networking
Print server
Data Link Protocol
Ethernet, Fast Ethernet
Connections
1 x parallel - 36 PIN Centronics ¦ 1 x RS-232/422/485 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x RS-232
Compliant Standards
FCC Class A certified, UL, cUL, GS, EN55024, EN55022 Class B, CCC, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Consumption Operational
200 Watt
Power Consumption Stand by / Sleep
25 Watt
Software Included
Drivers & Utilities
OS Required
Microsoft Windows NT, Microsoft Windows Vista / XP
Service & Support
Limited warranty - parts and labour - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches
Min Operating Temperature
4 °C
Max Operating Temperature
38 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
24.6 cm
Depth
39 cm
Height
30 cm
Weight
15.3 kg
