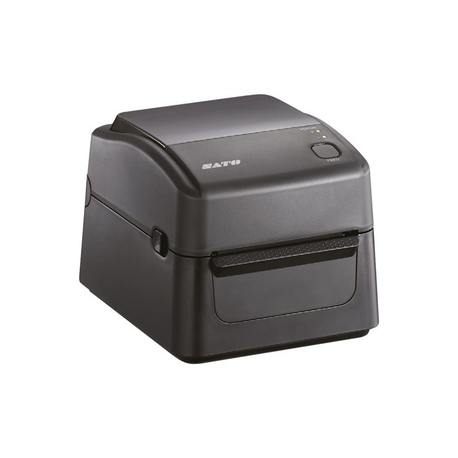

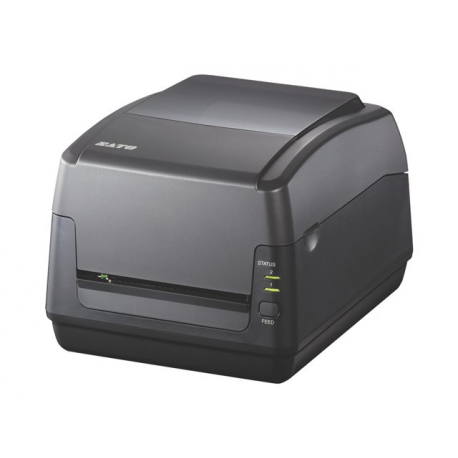

SATO WS4 Series WS412 - Label printer - direct thermal - Roll (11.5 cm) - 300 dpi - up to 102 mm / sec - USB, LAN, serial - black
images are for illustrative purposes only
New
Article: 1528082 Intrastat: 84433210 SKU: WD302-400NN-EU
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal - monochrome |
| Enclosure Colour | Black |
| Localisation | Europe |
| Print Speed | Up to 102 mm/sec - max speed |
| Connectivity Technology | Wired |
| Interface | USB, LAN, serial |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | SZPL, SDPL, SIPL, SEPL |
| Fonts | CG Times, CG Triumvirate, OCR-A, OCR-B, Bitmap |
| Styles & Effects | Rotated text |
| Features | Label Taken Sensor (LTS), gap sensor, open head sensor |
| Barcodes | Code 93, Code 39, UCC/EAN-128, NW-7, QR code, MaxiCode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, GS1 DataBar-14, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Stacked, MSI, GS1-128 |
| RAM Installed (Max) | 32 MB |
| Flash Memory | 16 MB |
| Media Type | Tickets, continuous labels, die cut labels, tags, fanfold labels |
| Max Media Size | Roll (11.5 cm) |
| Min Media Size (Custom) | 22.4 mm x 8 mm |
| Max Media Size (Custom) | 115 mm x 996 mm |
| Media Sizes | Roll (2.24 - 11.5 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 996 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.5 cm) |
| Networking | Print server |

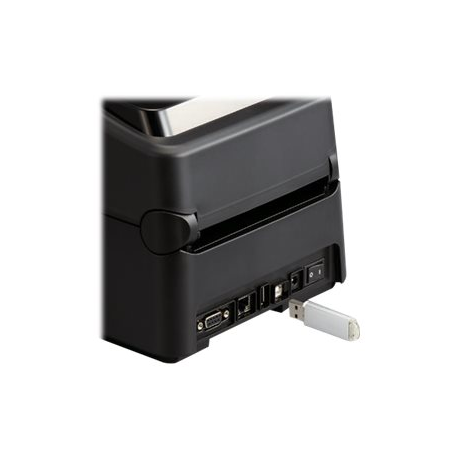

| Connections | 1 x RS-232 ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B |
| Compliant Standards | CSA, UL, TUV GS, CCC, FCC, RoHS, EAC |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 60 Watt |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Width | 18.38 cm |
| Depth | 22.59 cm |
| Height | 16.6 cm |
| Weight | 1.74 kg |
