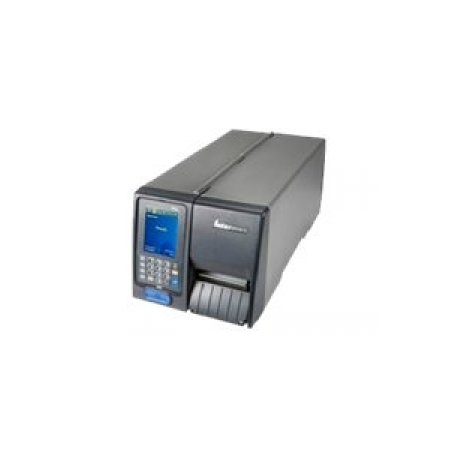

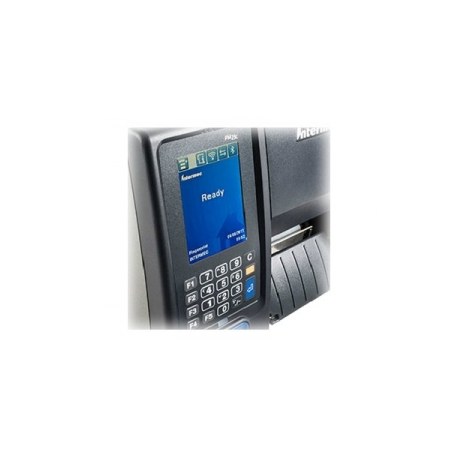

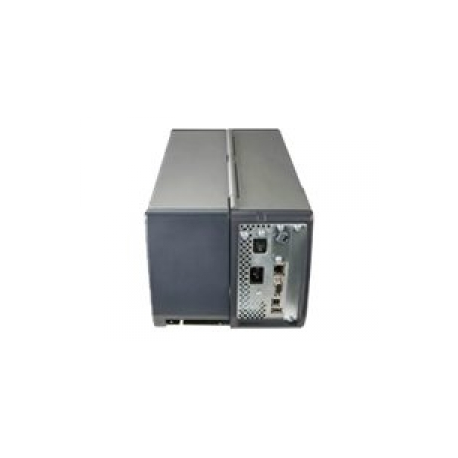

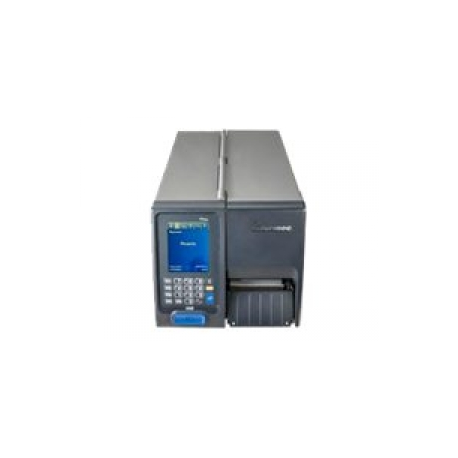

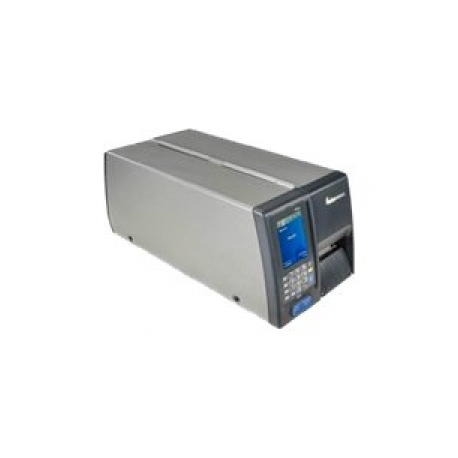

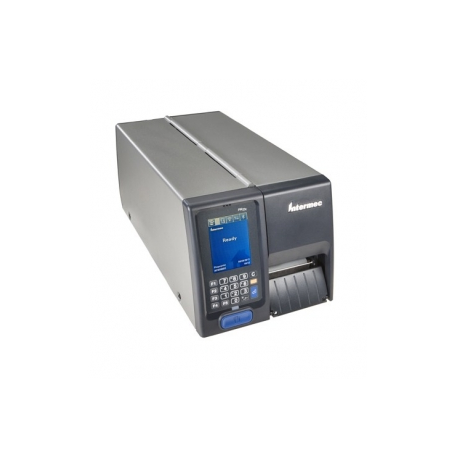

Honeywell PM23c - Label printer - thermal transfer - Roll (6.8 cm) - 203 dpi - up to 300 mm / sec - USB 2.0, LAN, serial, USB host
Honeywell PM23c - Label printer - thermal transfer - Roll (6.8 cm) - 203 dpi - up to 300 mm / sec - USB 2.0, LAN, serial, USB host
Manufacturer
•INTERMEC
Reference
•PM23CA1100000202
Article
•1028071
Intrastat
•84433210
Shipping weight
•9.5 kg
Printer Type
Label printer - thermal transfer - monochrome
Localisation
Europe
Print Speed
Up to 300 mm/sec - max speed - 203 dpi
Built-in Devices
Status LCD
Connectivity Technology
Wired
Interface
USB 2.0, LAN, serial, USB host
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, Intermec Printer Language (IPL), Intermec Fingerprint, Intermec Direct Protocol, DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL
Barcodes
EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, Standard 2 of 5, Grid Matrix Code
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
128 MB
Media Type
Labels, linerless labels, fanfold paper, tag stock
Max Media Size
Roll (6.8 cm)
Min Media Size (Custom)
19 mm
Max Media Size (Custom)
68 mm
Media Sizes
Roll (1.9 - 6.8 cm)
Max Printing Width
56 mm
Roll Maximum Outer Diameter
61 mm
Roll Core Diameter
76 mm, 38 mm
Media Feeders
1 x manual - 1 roll
Networking
Print server
Remote Management Protocol
SNMP 1, SNMP 3, SNMP 2c
Connections
1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A
Compliant Standards
FCC Class A certified, UL, cUL, EN55022 Class A, CCC, RoHS
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Consumption Operational
300 Watt
Power Consumption Stand by
9 Watt
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
Width
20.55 cm
Depth
43.184 cm
Height
18.1 cm
Weight
9.5 kg
