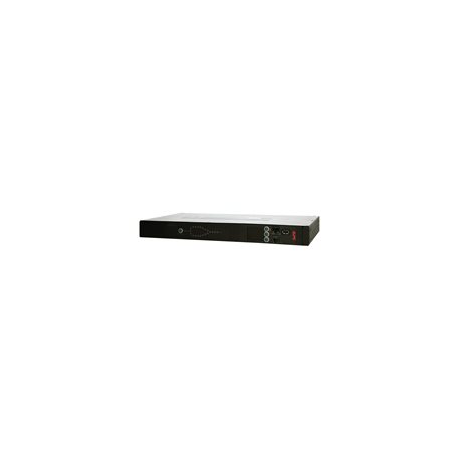

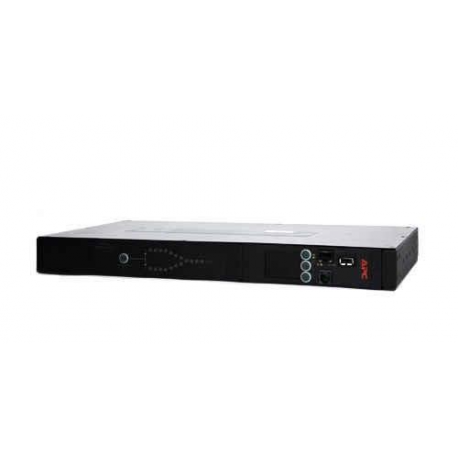

APC Rack Automatic Transfer Switch AP4423 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10 / 100, RS-232, USB - output connectors: 9 - 1U - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1492731 Intrastat: 85176990 Ražotāja kods: AP4423
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
The APC by Schneider Electric Rack Automatic Transfer Switch (ATS) provides reliable, redundant power to single-corded equipment loads, such as servers. The Rack ATS has two input power cords supplying power to the connected loads. If the primary source becomes unavailable or out of the selected range, the Rack ATS will seamlessly source power from the secondary source without interrupting critical loads.
| Device Type | Redundant switch - rack-mountable |
| Height (Rack Units) | 1U |
| Colour | Black |
| Input Voltage | AC 230 V |
| Input Voltage Margin | ± 10% |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C20 16A |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Max Electric Current | 16 A |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP, Telnet, HTTP, SSH |
| Interfaces | 1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Included Accessories | Mounting kit, rack mounting brackets |
| Cables Included | Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Current meter, LED indicators, short-circuit protection |
| Compliant Standards | RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Width | 43.2 cm |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 3.74 kg |
| Shipping Width | 60 cm |
| Shipping Depth | 35.6 cm |
| Shipping Height | 11.4 cm |
| Shipping Weight | 5.51 kg |
| Designed For | P/N: AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR8213, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, S |
