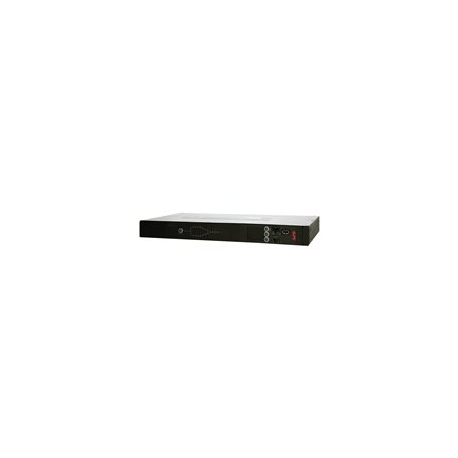

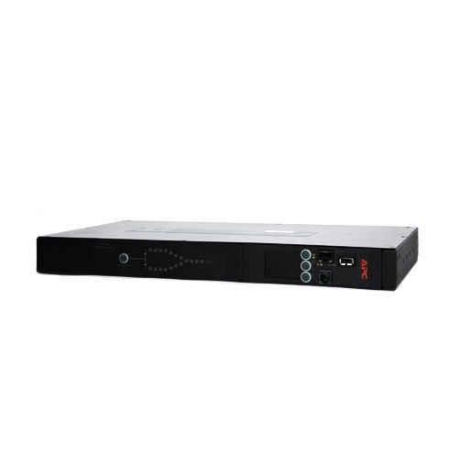

APC Rack Automatic Transfer Switch AP4423 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10 / 100, RS-232, USB - output connectors: 9 - 1U - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

  • APC Rack ATS, 230V, 16A, C20 in, (8) C13 (1) C19 out
  • APC Rack ATS, 230V, 16A, C20 in, (8) C13 (1) C19 out
  • APC Rack ATS, 230V, 16A, C20 in, (8) C13 (1) C19 out
images are for illustrative purposes only

New

Article: 1492731 Intrastat: 85176990 SKU: AP4423
Pricing and stock details are available to registered users only.
 Add to compare
The APC by Schneider Electric Rack Automatic Transfer Switch (ATS) provides reliable, redundant power to single-corded equipment loads, such as servers. The Rack ATS has two input power cords supplying power to the connected loads. If the primary source becomes unavailable or out of the selected range, the Rack ATS will seamlessly source power from the secondary source without interrupting critical loads.



Device TypeRedundant switch - rack-mountable
Height (Rack Units)1U
ColourBlack
Input VoltageAC 230 V
Input Voltage Margin± 10%
Frequency Required50/60 Hz
Input Connectors2 x power IEC 60320 C20 16A

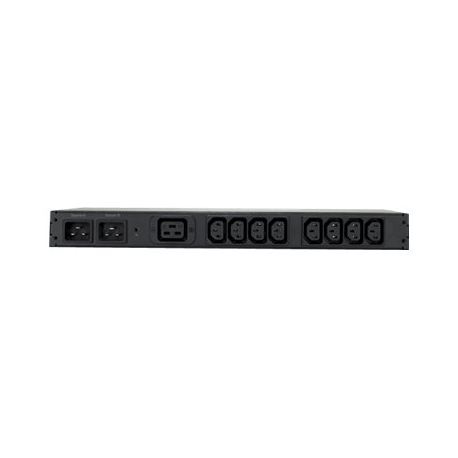

Power Output Connectors Details8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output VoltageAC 230 V
Max Electric Current16 A
Remote Management InterfaceEthernet 10/100, RS-232, USB
Remote Management ProtocolSNMP, Telnet, HTTP, SSH
Interfaces1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Included AccessoriesMounting kit, rack mounting brackets
Cables IncludedSerial cable - external
Rack Mounting KitIncluded
FeaturesCurrent meter, LED indicators, short-circuit protection
Compliant StandardsRoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU
Service & SupportLimited warranty - 2 years
Min Operating Temperature-5 °C
Max Operating Temperature45 °C
Humidity Range Operating5 - 95% (non-condensing)
Width43.2 cm
Depth23.6 cm
Height4.4 cm
Weight3.74 kg
Shipping Width60 cm
Shipping Depth35.6 cm
Shipping Height11.4 cm
Shipping Weight5.51 kg
Designed ForP/N: AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR8213, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, S
