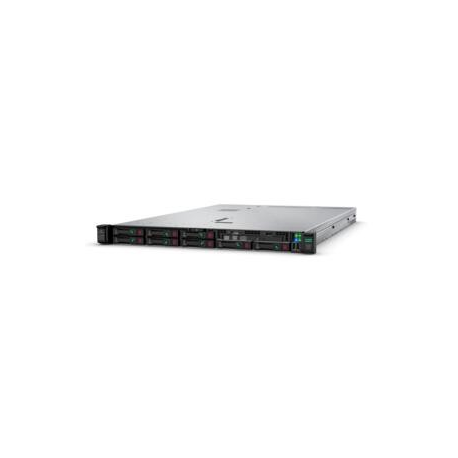

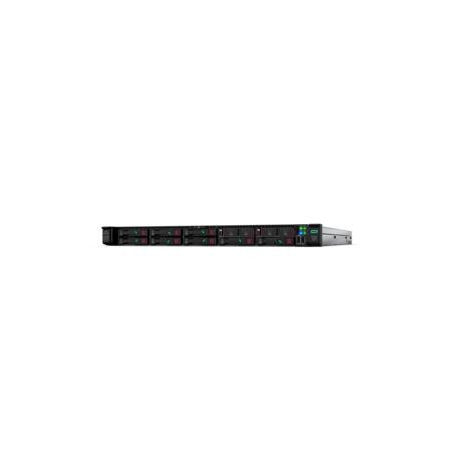

HPE ProLiant DL360 Gen10 Entry - Server - rack-mountable - 1U - 2-way - 1 x Xeon Bronze 3106 / 1.7 GHz - RAM 16 GB - SATA / SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
HPE ProLiant DL360 Gen10 Entry - Server - rack-mountable - 1U - 2-way - 1 x Xeon Bronze 3106 / 1.7 GHz - RAM 16 GB - SATA / SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
Ražotājs
•HPE
Ražotāja kods
•867961-B21
Artikuls
•1535985
Pakas svars
•13.04 kg
Type
Server
Product Form Factor
Rack-mountable - 1U
Built-in Devices
Battery
Server Scalability
2-way
Hot-Swap Bays Qty
8
CPU
Intel Xeon Bronze 3106
Clock Speed
1.7 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Installed Size
L3 Cache - 11 MB
Cache Per Processor
11 MB
Installed Size
16 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2133 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
24 (Total) / 23 (empty)
Features
Registered, dual rank, slots 13 - 24 are available in two-processor configuration only
Configuration Features
1 x 16 GB
RAM Supported
3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type
No HDD
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i
Channel Qty
14
Type
No optical drive
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor Type
None.
Video Interfaces
VGA
Ethernet Ports
4 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF ¦ 1 (total) / 1 (free) x external
Slots
1 (total) / 1 (free) x FlexibleLOM (low-profile) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
14 x SATA-600 ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x HPE iLO - Type A (1 in front) ¦ 2 x USB 3.0 (2 rear) ¦ 1 x PoweredUSB 3.0 (1 in front) ¦ 2 x USB 3.0 (1 front, 1 internal)
Included Accessories
HPE Easy Install Rails, CPU standard heatsink, 5 x standard hot plug fans
Cables Included
Power cable
Compliant Standards
AES, WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
500 Watt
OS Certified
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
Software
HPE Server UEFI
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days
Width
43.46 cm
Depth
70.7 cm
Height
4.29 cm
Weight
13.04 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
