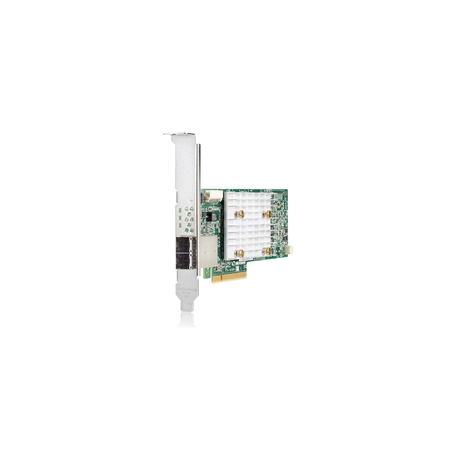

HPE Smart Array P408e-p SR Gen10 - Storage controller (RAID) - 8 Channel - SATA 6Gb / s / SAS 12Gb / s - RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - PCIe 3.0 x8 - for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL380 Gen10, ML30 Gen10, XL220n Gen10
HPE Smart Array P408e-p SR Gen10 - Storage controller (RAID) - 8 Channel - SATA 6Gb / s / SAS 12Gb / s - RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM - PCIe 3.0 x8 - for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL380 Gen10, ML30 Gen10, XL220n Gen10
Ražotājs
•HPE
Ražotāja kods
•804405-B21
Artikuls
•1491418
<ul><li>Storage interface (SAS/SATA)</li><li>4 GB Flash-Backed Write Cache (FBWC)</li><li>PCI Express 3.0 x8 link</li><li>RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)</li><li>Mixed Mode(RAID logic drives and HBA physical drives simultaneously)</li><li>Legacy and UEFI boot operation</li><li>UEFI System Utilities (storage configuration)</li><li>Up to 238 physical drives</li><li>Up to 64 logical drives</li><li>HPE SSD Smart Path</li><li>Rapid Parity Initialization (RPI)</li><li>Rapid rebuild</li><li>Drive Sanitize</li><li>Performance Optimization-Degraded Reads and Read Coalescing</li><li>Power efficiency</li><li>Seamless upgrades from HPE Smart Array S-class and E-class controllers</li><li>FIPS 140-2 Level 1 Implementation Under Test</li></ul>
The HPE Smart Array P408e-p SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance on externally attached drives while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight external SAS lanes, allowing connection to externally attached SAS or SATA drives, and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption.<br /><br /><p> </p>
Device Type
Storage controller (RAID) - plug-in card
Host Bus
PCIe 3.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Buffer Size
4 GB
Supported Devices
Hard drive, disk array (RAID)
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Maximum LUNs
64
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s
Features
Flash Backed Write-back Cache (FBWC)
Compliant Standards
FIPS 140-2 Level 1
OS Required
Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Designed For
HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL180 Gen10 Entry, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL325 Gen10 Solution, DL345 Gen10 Plus Base, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL365 Gen10 Plus, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity
