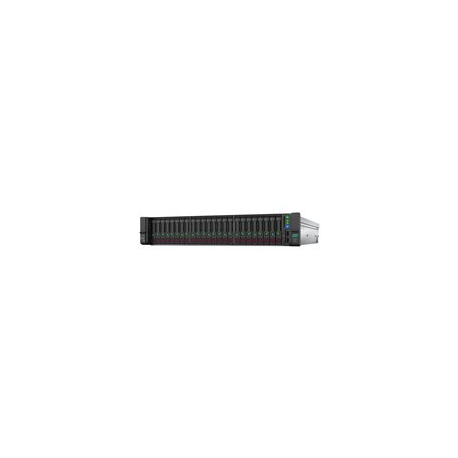

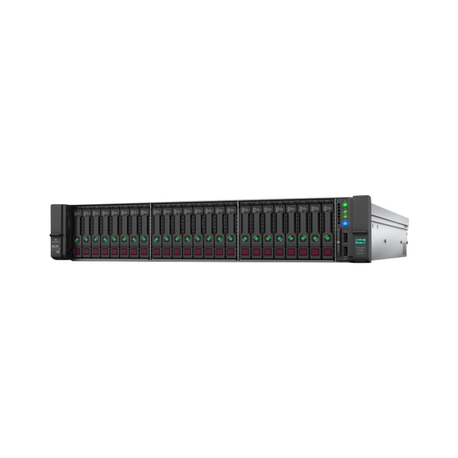

HPE ProLiant DL380 Gen10 Performance - Server - rack-mountable - 2U - 2-way - 1 x Xeon Gold 6130 / 2.1 GHz - RAM 64 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none - HPE Smart Buy
HPE ProLiant DL380 Gen10 Performance - Server - rack-mountable - 2U - 2-way - 1 x Xeon Gold 6130 / 2.1 GHz - RAM 64 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none - HPE Smart Buy
Ražotājs
•HPE
Ražotāja kods
•P06423-B21
Artikuls
•1535964
Pakas svars
•14.76 kg
Type
Server
Product Form Factor
Rack-mountable - 2U
Built-in Devices
Battery
Server Scalability
2-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide
CPU
Intel Xeon Gold 6130
Clock Speed
2.1 GHz
Max Turbo Speed
3.7 GHz
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Installed Size
L3 Cache - 22 MB
Cache Per Processor
22 MB
Installed Size
64 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
24 (Total) / 22 (empty)
Features
Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features
2 x 32 GB
RAM Supported
3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size
2 GB
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software
Channel Qty
14
Type
No optical drive
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HP 331i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
1 external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces

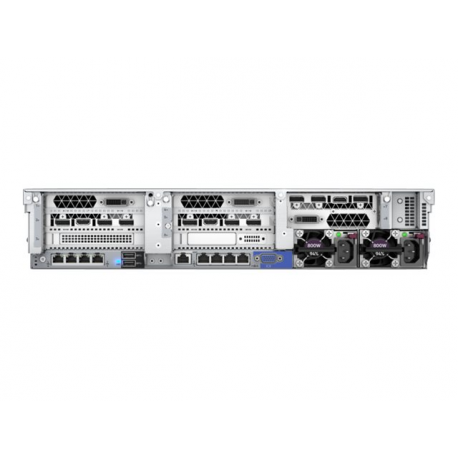

1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear)
Included Accessories
HPE Easy Install Rails, 4 standard fans, CPU standard heatsink
Compliant Standards
AES, FIPS 140-2, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Manufacturer Selling Program
HPE Smart Buy
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt
80 PLUS Certification
80 PLUS Platinum
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days
Width
44.55 cm
Depth
73.07 cm
Height
8.74 cm
Weight
14.76 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
31 dBA
